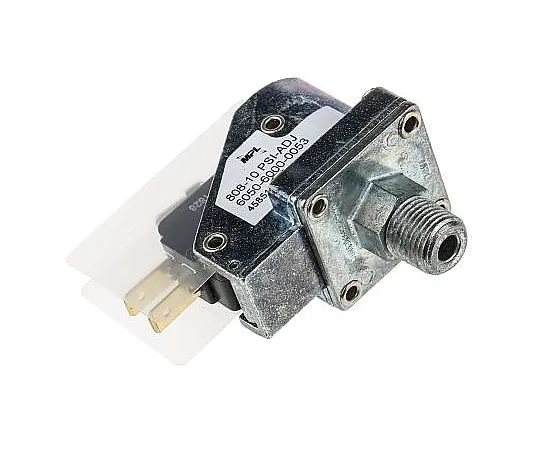

63-4783-72 Herga Differential for Fluid Pressure Sensor, 16bar Max Pressure Reading , 250 V ac 6101-0013
Product Description
Product Model: 63-4783-72Product Brand: Herga Features […]
Contact Us
Product Details
Product Model: 63-4783-72
Product Brand: Herga
Features
- UL recognised. Miniature Medium/High Pressure. Rating: 0.69 to17.2 bar (10 to 250 psi) Die cast housing with integral 1//8 NPT connection, polyurethane diaphragm, silver alloy contacts External adjustment screw The switch can be mounted in any orientation to suit a wide variety of applications Factory fitted spring for operating pressure range 0.69 to 2.76 bar. Termination type: Faston 3 additional colour coded springs are included for ***r selection of alternative operating pressure ranges: Red 2.07 to 8.6 bar Dark blue 4.13 to 11.71 bar Yellow 8.6 to 17.2 bar
Spec
- Quantity：1piece
- Pressure Reading Type : Differential
- Minimum Pressure Reading : 0.7bar
- Maximum Pressure Reading : 16bar
- Output Type : Relay
- Media Measured : Fluid
- Maximum Current : 5 A
- Supply Voltage : 250 V ac
- Housing Material : Metal
- Maximum Operating Temperature : +85°C
- CODE No.:397-1191
