Features

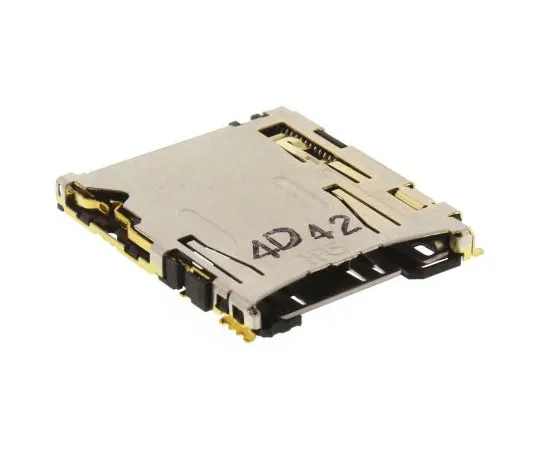

• DM3 AT* part numbers are Push-Push with an ejection mechanism and are Top board mounting (standard) DM3 BT* part numbers are Push-Push with an ejection mechanism and are Bottom board mounting (reverse) DM3 C ; CS* part numbers are Hinge, Push-Pull with no ejection mechanism and are Top board mounting (standard) DM3 D* part numbers are Push-Pull without an ejection mechanism and are Top board mounting (standard) DM3xxx-SF-xxx part numbers have standard right angle SMT terminals DM3xxx-DSF-xxx part numbers have reverse right angle SMT terminals. Hirose DM3 Series microSD Card Connectors. DM3 series SMT mounting microSD card connectors with small external dimensions and a strong rigid structure. These DM3 series microSD card connectors have reverse card insertion protection and a N/O card detection switch. The termination leads of these DM3 series microSD card connectors are accessible so they can be inspected and re-worked. Small external dimensions Strong, rigid construction Reverse card insertion protection 4 connection points of the metal cover to the PCB secure connection of the ground circuit providing EMI protection Normally Open card detection switch Black LCP insulator, UL94V-0
