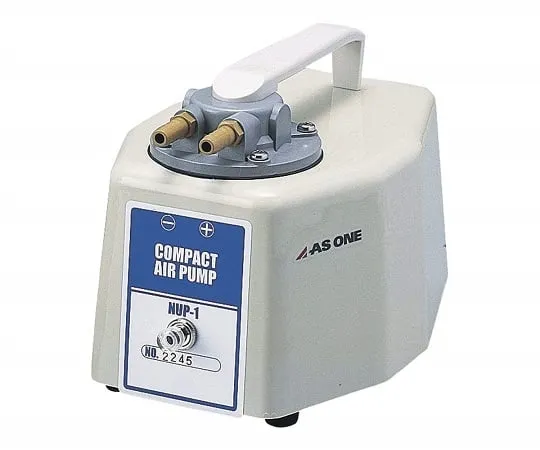

1-361-01 Compact Air Pump Suction-Discharge Convertible Type NUP-1
Product Description
Product Model: 1-361-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-361-01
Product Brand: AS ONE Corporation
Features
- There is no oil component, oil odor or contamination.
- No need to *** oil or carbon.
- Comes with motor burn protection.
- There is no backflow.
- Compact size for space-saving ***.
Spec
- Model number: NUP-1
- Discharge air volume: 12L/min
- Achieving vacuum degree: About 67kPa (500mmHg)
- Highest pressure: About 0.20Pa (2.0kg/cm2)
- Motor: Condenser type, 25W
- Pump type: Diaphragm structure
- Gas contact unit material: Brass (Teflon coating)
- Intake, exhaust connection port outer diameter: φ9mm
- Power supply: 100VAC 50/60Hz
- For both discharge and suction
- Size: 250 x 150 x 160mm
- Weight: 3.3kg
- Accessories: 7mm tube (2m)
- *Gauge is not included in the package.
