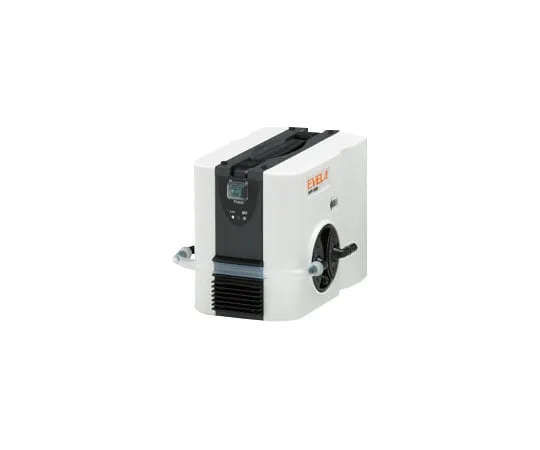

63-1395-53 Inverter diaphragm pump NVP-1000V
Product Description
Product Model: 63-1395-53Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-53
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Diaphragm type vacuum pump with inverter control
- Standard type of 20 L/min, 10 hPa.
Spec
- Exhaust speeds (High and Low): 30 L/min, 20 L/min
- Reached vacuum: 10 hPa (about 7.5 Torr)
- Safety features: Motor malfunction detection
- Motor: 90 W output
- Cylinder: 2 tiers
- Gas Contact Material: Teflon (R), PPS, Kalrez (R)
- Intake and exhaust nozzles: 10 mm outer diameter hose mouth (variable direction of intake and exhaust nozzles)
- Operating ambient temperature range: 5 ~ 40 degrees C
- External dimensions: 138 (177) x 206 (260) x 180 mm/* Dimensions in () include projections.
- Weight: approximately 6 kg
- Power input: 1 A, 100 VA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, no load and dry conditions.
- *Diaphragms and valves are consumables.
- Code: 270290
