Electronic/Electrical Parts and Controll Equipments

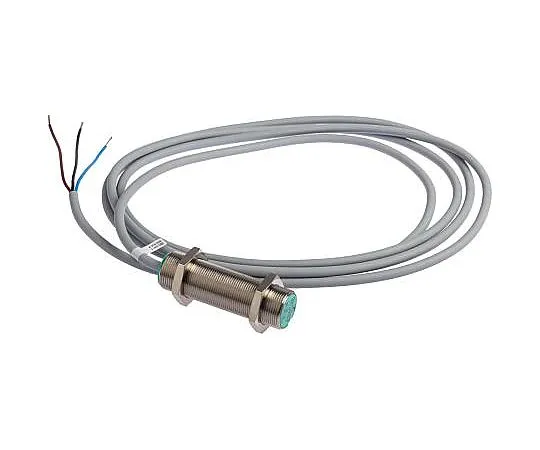

63-4779-19 Pepperl + Fuchs Inductive Sensor 5 mm Detection, M18 x 1, 0-20 mA, Analogue, 60mm Length, 15 → 30 V dc supply NBB5-18GM60-I3
model:
63-4779-19
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-4779-19Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-4779-19
Product Brand: Pepperl + Fuchs
Features
- Analogue Output. Sense all metals Nickel plated brass housing with PBT sensing face Embeddable IP67 Precise linearity and high repeatability without recalibration Linear output current proportional to the distance between target and sensor (with an external 500Ω resistor a conversion in 0 to 10V range is possible) Operating temperature range -10 to +70°C Supply voltage 15 to 30Vdc No load current 8mA EN60947-5-2 Short circuit and reverse polarity protection
Spec
- Quantity：1piece
- Body Style : Barrel
- Thread Size : M18 x 1
- Output Type : 0-20 mA, Analogue
- Detection Range : 5 mm
- Terminal Type : Cable
- Supply Voltage : 15 → 30 V dc
- Length : 60mm
- Maximum DC Voltage : 30V
- Mounting Type : Flush Mount
- Switching Current : 20 mA
- Housing Material : Nickel Plated Brass
- Reverse Polarity Protection : Yes
- CODE No.:387-2707
