Electronic/Electrical Parts and Controll Equipments

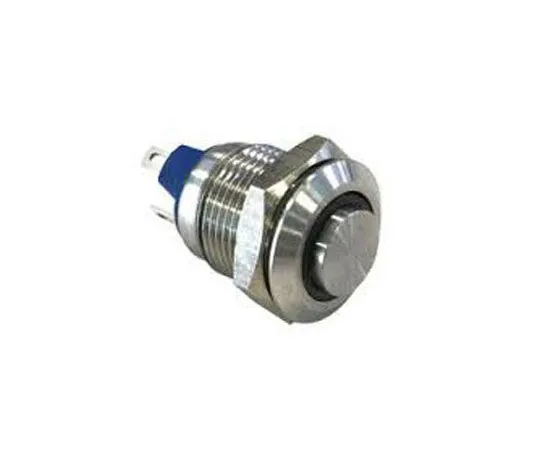

63-7017-27 Bulgin Single Pole Single Throw (SPST) Momentary Green LED Push Button Switch, IP67, Panel Mount, 36V dc MAV0120/3D2GN024
Product Description
Product Model: 63-7017-27Product Brand: Bulgin Features […]
Contact Us
Product Details
Product Model: 63-7017-27
Product Brand: Bulgin
Features
- Anti-Bandar Push Button Switch
- Designed to resist physical interference, suitable for any application where water and dust need to be prevented from entering panels such as public shops, external panels and open dashboards.
- Stainless Steel IP65 Panel Top Protection Momentarily Convex Button Type/Embedded Button Type Available
Spec
- Quantity:1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : Yes
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Diameter : 12mm
- LED Colour : Green
- IP Rating : IP67
- Actuator Colour : Silver
- Voltage Rating : 36V dc
- Contact Current Rating : 2 A
- Actuator Shape : Round
- Terminal Type : Solder Lug
- Actuator Type : Momentary
- CODE No.:127-8481
