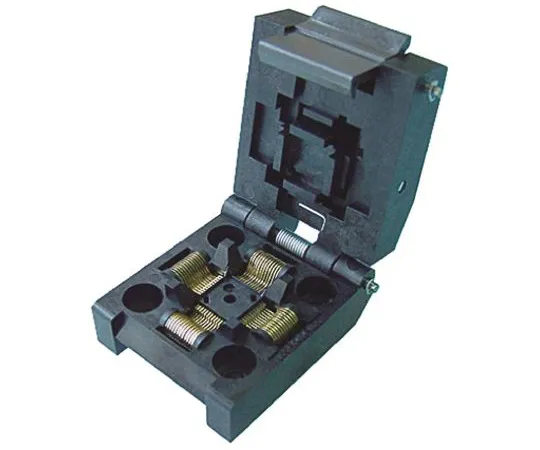

63-4775-63 Yamaichi 0.5mm Pitch 64 Way SMT QFP Test Sockets IC51-0644-807
Product Description
Product Model: 63-4775-63Product Brand: Yamaichi Featur […]
Contact Us
Product Details
Product Model: 63-4775-63
Product Brand: Yamaichi
Features
- QFP Test Sockets - Clamshell. Clamshell test sockets for QFP's Spring loaded hinged lid latches to retain ICs Easy, repeatable access for test purposes High reliability, durability and temperature range Range supports a variety of pitches Body material Glass Filled PES; Glass Filled PEI Contact material Beryllium Copper Contact plating Gold Insulation Resistance 1000 MΩ (At 500 Vdc) Contact resistance 30mΩ (at 10mA) Operating temperature -55°C to 170°C Durability 10000 insertions
Spec
- Quantity：1piece
- Package Type : QFP
- G***er : Female
- Number of Contacts : 64
- Pitch : 0.5mm
- Body Orientation : Straight
- Contact Material : Beryllium Copper
- Contact Plating : Gold over Nickel
- Socket Mounting Type : Surface Mount
- Termination Method : Solder
- Housing Material : PEI, PES, PSU
- CODE No.:372-3419
