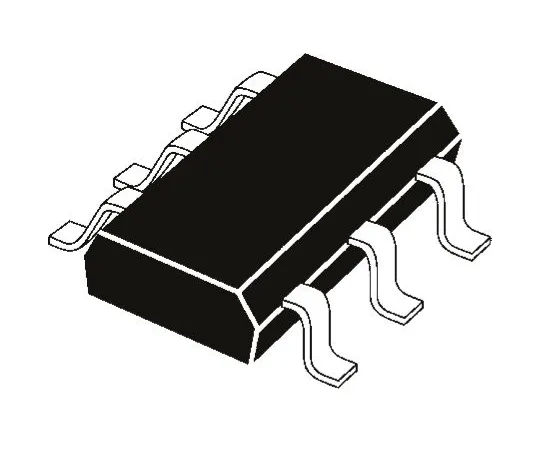

63-5138-16 ROHM, UMD22NTR, Dual NPN + PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin SOT-363 UMD22NTR
Product Description
Product Model: 63-5138-16Product Brand: ROHM Features D […]
Contact Us
Product Details
Product Model: 63-5138-16
Product Brand: ROHM
Features
- Dual Resistor Dual Digital NPN+PNP Transistors, ROHM
Spec
- Quantity：1bag(75pieces)
- Transistor Type : NPN + PNP
- Number of Elements per Chip : 2
- Maximum Continuous Collector Current : 100 mA
- Maximum Collector Emitter Voltage : 50 V
- Typical Input Resistor : 4.7 kΩ
- Base-Emitter Resistor : 47kΩ
- Package Type : SOT-363 (SC-88)
- Pin Count : 6
- Minimum DC Current Gain : 80
- Maximum Power Dissipation : 150 mW
- Maximum Emitter Base Voltage : 5 V
- Typical Resistor Ratio : 0.1
- Maximum Operating Temperature : +150 °C
- CODE No.:826-8576
