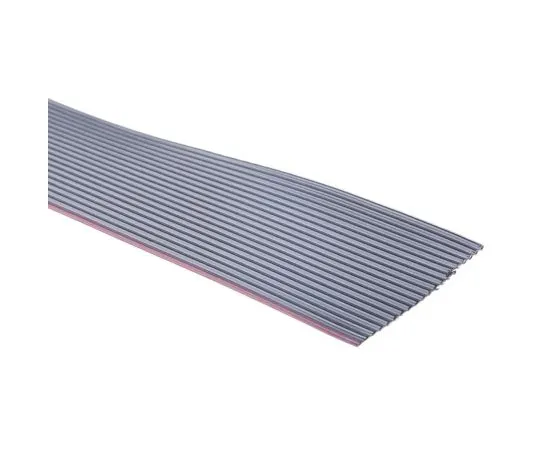

63-4767-94 3M 20 Way Unscreened Flat Ribbon Cable, 25.4 mm Width, Series 3319, 5m 3319-20 5MTR
Product Description
Product Model: 63-4767-94Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4767-94
Product Brand: 3M Company
Features
- UL recognised. 3M High Flex 1.27mm Pitch Ribbon Cable - Type 3319. 28awg stranded wire on 1.27mm (0.050in.) centres allows termination to a broad line of IDC connectors Designed to interface with 3M and all other connectors on a 1.27mm (0.050in.) pitch, this high-flex life cable performs 100 million cycles at 44.5mm (1 3/4 in.) diameter Constructed of 19 strands of high strength copper alloy provides the longest flex life available for dynamic applications Insulation resistance >1x1010Ω/10ft(3m)
Spec
- Quantity：1roll(5m)
- Number of Ways : 20
- Pitch : 1.27mm
- American Wire Gauge : 28
- Reel Length : 5m
- Width : 25.4 mm
- Cable Shape : Ribbon
- Sheath Colour : Black
- Voltage Rating : 300 V
- Hi-Flex : Yes
- Screened/Unscreened : Unscreened
- Conductor Strand Type : Stranded
- Number of Strands : 19
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +105°C
- Characteristic Impedance : 171 Ω
- CODE No.:342-8546
