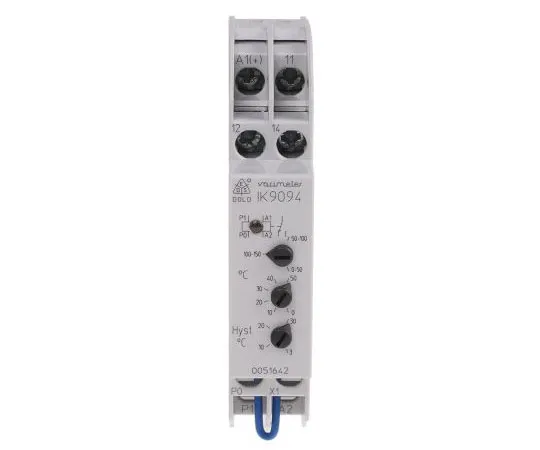

63-7531-38 Dold Temperature Monitoring Relay With SPDT Contacts, 24 V ac/dc IK9094.11 AC/DC24V 0-150C
Product Description
Product Model: 63-7531-38Product Brand: Dold Features I […]
Contact Us
Product Details
Product Model: 63-7531-38
Product Brand: Dold
Features
- IEC 255, VDE 0435. IK 9094 Temperature monitor for PT100. The IK 9094.11 AC/DC24V 0 to 150°C is a Temperature Monitoring Relay with detection sensor of in-circuit broken wire. It features LED indicator for operation and state of output relay.Perfect for monitoring for example, motors, ball bearings. This relay has no galvanic separation between measuring and auxiliary circuit. The hysteresis and latching functions are full programmable via X1 terminal.. Operating temperature: From -20°C to 60°C Mounting Type:DIN Rail Housing/terminal protection class:IP40/IP20 Dimensions:17.5 x 90 x 59 mm. Features ; Benefits
Spec
- Quantity:1piece
- Monitoring Application : Temperature
- Supply Voltage : 24 V ac/dc
- Contact Configuration : SPDT
- Temperature Sensitivity : Overtemperature
- Temperature Sensing Range : 0 → +150°C
- Operating Temperature Range : -20 → +60 °C
- CODE No.:410-5963
