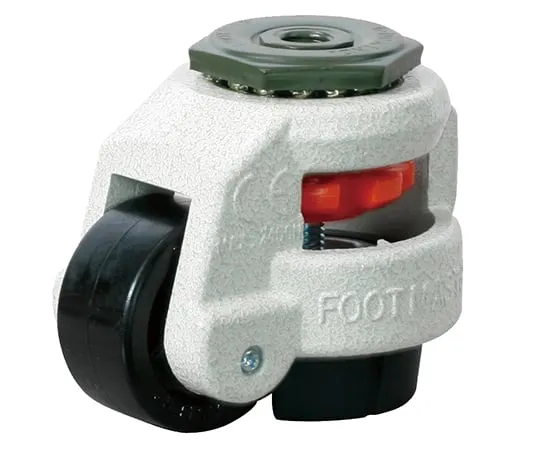

63-1239-75 Footmaster Leveling Caster (Screwed) GD-100-S-NYN
Product Description
Product Model: 63-1239-75Product Brand: YUEI CASTER Co. […]
Contact Us
Product Details
Product Model: 63-1239-75
Product Brand: YUEI CASTER Co., Ltd.
Features
- These casters are ***d for mechanical devices.
- Can be attached to heavy objects.
- Built-in adjuster enables adjustment of the adjuster.
- Easy to fix and does not require separate adjusters.
Spec
- Wheel diameter (mm): 75
- Car width (mm): 30
- Mounting height (mm): 120
- Screw Size (mm): M16 x 24
- bolt pitch (mm): 2
- nut opposite side (mm): 65
- Eccentricity (mm): 53
- Turning radius (mm): 95
- Mounted bolt inner diameter (mm): 8
- Adjuster Adjustment Amount (mm): 12
- Adjuster Base Diameter (mm): 70
- Self-weight (g): 1600
- Surface treatment: Powder coating
