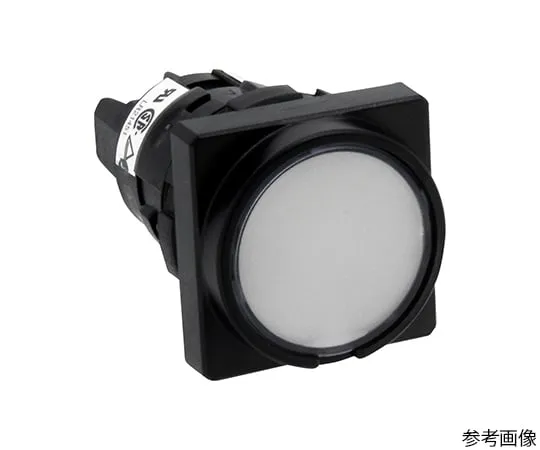

63-6123-78 LW Series Pilot Light Φ 22 (Round Square LED) LW3P-12MPW
Product Description
Product Model: 63-6123-78Product Brand: IDEC CORPORATIO […]
Contact Us
Product Details
Product Model: 63-6123-78
Product Brand: IDEC CORPORATION
Features
- The light touch design is easy on the hands. Suitable for food and packaging machines with many operations.
- Light operation.
- Collective adhesion mounting is possible, and attachment/detachment of the contact unit can be easily carried out even in the case of collective adhesion mounting.
- Uses separate structure of lock lever attaching/detaching system by bayonet mechanism.
- Two types of contacts are available: gold contacts (silver with gold cladding) and silver contacts.
- The protective structure is jet proof, IP65 (IEC60995). (The buzzer is closed) - UL, CSA certified and EN compliant. (excluding buzzers)
Spec
- Mounting Hole Dimensions, Mounting Shape: φ 22
- Illuminating Part Shape: Other
- Lens Shape: Flat
- Illumination Part rated voltage: AC/DC6V
- Button Color/Illuminated Color: Pure White (PW)
- terminal shapes: soldering
- Protection Structure: IP 65
- Illumination type: LED illumination
