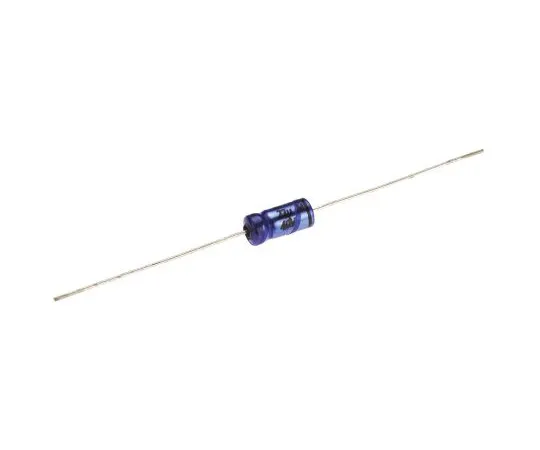

63-4764-53 Vishay 22μF 40V dc Aluminium Electrolytic Capacitor, Through Hole 4.5 (Dia.) x 10mm +85°C 4.5mm 10mm MAL202137229E3
Product Description
Product Model: 63-4764-53Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4764-53
Product Brand: Vishay
Features
- CEI384-4, DIN41316
- Vishay 021 ASM series aluminum electrolytic capacitor
- Vishay's 021 ASM electrolytic capacitor is manufactured from a cylindrical aluminum case insulated by a blue sleeve. This electrolytic capacitor ***s non-solid electrolytes and is charge-discharge resistant. The 021 ASM electrolytic capacitor features a long life of 2500 ~ 8000 hours at +85°C.
- Product Features:
- Polarization
- Axial lead
- Miniaturization
- High CV product per unit volume
- Application: This electrolytic capacitor is suitable for general *** and can be ***d in industrial, automotive and audio-video applications. Ideal for coupling and decoupling, filtering, smoothing and buffering, etc. Beca*** the 021 series is small, the mounting height is low, and it can be ***d on the board. Also suitable for lightweight small mobile and portable devices.
Spec
- Quantity:1bag(5pieces)
- Capacitance : 22µF
- Voltage : 40V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 4.5 (Dia.) x 10mm
- Length : 10mm
- Minimum Operating Temperature : -40°C
- Diameter : 4.5mm
- Maximum Operating Temperature : +85°C
- Lifetime : 2500h
- Series : 021 ASM
- Leakage Current : 5.8 μA
- CODE No.:324-5155
