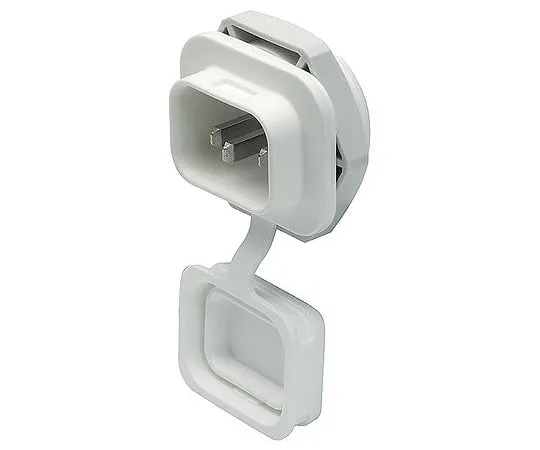

63-6993-59 Schurter S16 Panel Mount IEC Plug Male, 10 (IEC) A, 15 (UL/CSA) A, 250 V ac 4312.0009
Product Description
Product Model: 63-6993-59Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-6993-59
Product Brand: Schurter
Features
- Insertion Port for Schurter Equipment
- This insertion port for IEC equipment of Schurter has a special shape that guarantees IP protection when engaged with the connector. This sturdy flanged inlet provides advanced environmental protection. In addition, it is compatible with IP67 and IP69K, and the connection part is waterproof and weatherproof.
- Features and Benefits: IP67/IP69K Panel Mounting Screw Setting Maximum Operating Temperature: +85 °C IEC Rated Current: 10 A @ 250 V ac UL Rated Current: 15 A @ 250 V ac
Spec
- Quantity:1piece
- IEC Connector Type : S16
- Mounting Type : Panel Mount
- G***er : Male
- Current Rating : 10 (IEC) A, 15 (UL/CSA) A
- Body Orientation : Straight
- Termination Method : Solder
- Switch Type : 3 Pole
- Voltage Rating : 250 V ac
- CODE No.:125-9270
