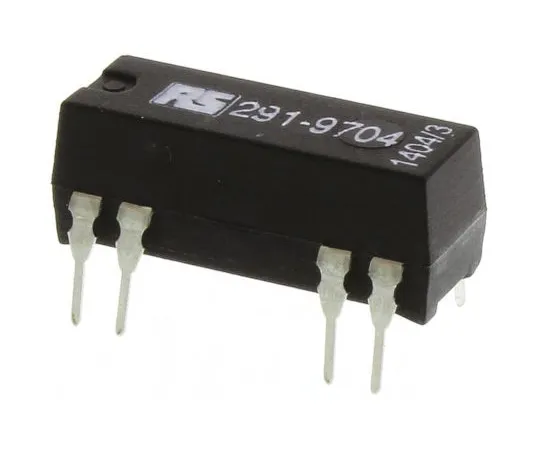

63-4754-48 SPDT Reed Relay, 0.25 A, 5V dc 291-9704
Product Description
Product Model: 63-4754-48Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4754-48
Product Brand: RS PRO
Features
- SPNO and SPCO DIP Relay. Low profile compact design Industry Standard pin configurations Coil suppression diode across pins 2 and 6 Operating temperature -20 to +70°C
Spec
- Quantity：1piece
- Contact Configuration : SPDT
- Coil Voltage : 5V dc
- Mounting Type : PCB Mount
- Maximum Switching Current AC : 0.25 A
- Maximum Switching Current DC : 0.25 A
- Maximum Switching Voltage AC : 175V ac
- Maximum Switching Voltage DC : 175V dc
- Coil Power : 125mW
- Coil Resistance : 200 Ω
- Length : 19.3mm
- Height : 5.1mm
- Depth : 6.4mm
- Dimensions : 19.3 x 6.4 x 5.1mm
- Isolation Coil To Contact : 1.5kV dc
- Minimum Operating Temperature : -20°C
- CODE No.:291-9704
