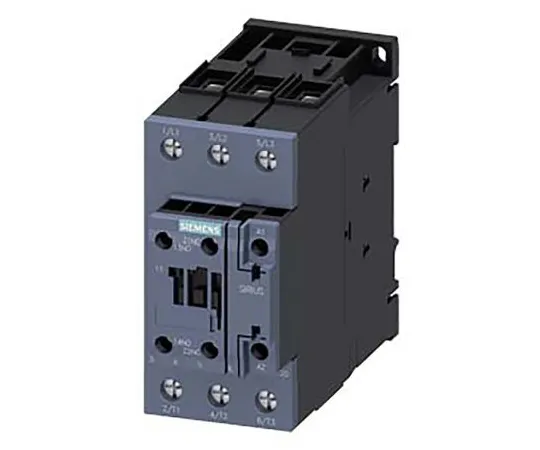

63-7012-07 Siemens 3 Pole Contactor, 80 A, 24 V ac Coil, SIRIUS Innovation, 3NO, 30 kW 3RT2037-1AC20
Product Description
Product Model: 63-7012-07Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-7012-07
Product Brand: Siemens
Features
- CE, UL, CSA, CCC • Screw terminals can be ***d only with screw terminal overload, and spring terminals can be ***d only with spring terminal overload.
- Contactors 3RT2 Series
- Climate-resistant 3RT2 contactors have been tested to be ideal for *** around the world. Available in sizes S00 through S2, it outputs up to 37 kW of power.
- Size S00, up to 7.5 kW Size S0, up to 18.5 kW Size S2, up to 37 kW Screw connection/Spring clamp impulse withstand voltage 6 kV Insulation voltage 690 V Actual loss power 4 W only DIN 40719 (extensible to IEC 204 -2) and IEC 750 Symbolic representation K, DIN EN 61346-2 Symbolic representation Q
Spec
- Quantity:1piece
- Coil Voltage : 24 V ac
- Number of Poles : 3
- Contact Current Rating : 80 A
- Power Rating : 30 kW
- Range : SIRIUS Innovation
- Series : 3RT2
- Normal State Configuration : 3NO
- Contact Voltage Rating : 690 V ac
- Number Of Auxiliary Contacts : 2
- Terminal Type : Screw
- Width : 130mm
- CODE No.:127-1488
