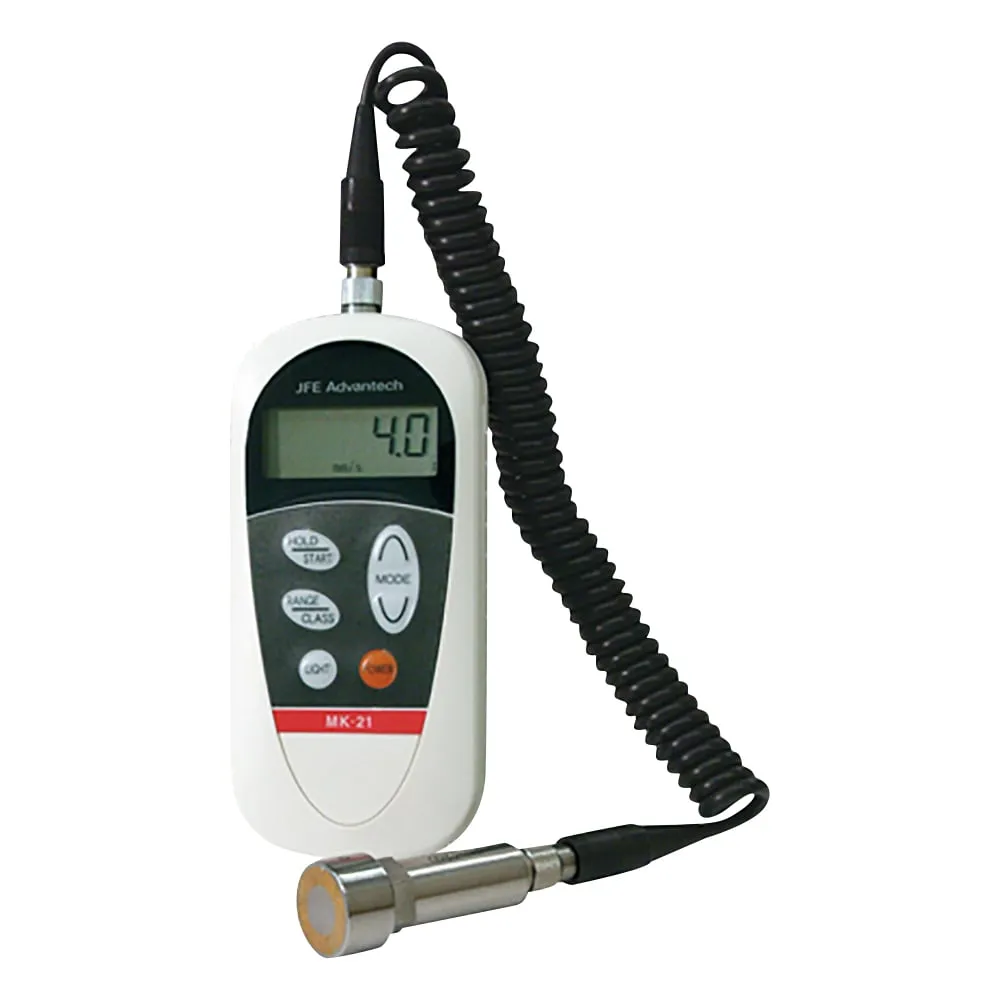

2-2595-01 Vibrometer with Diagnostic Function MK-21
model:
2-2595-01
category:
toner
Product Description
Product Model: 2-2595-01 Features Built-in diagnostic f […]
Contact Us
Product Details
Product Model: 2-2595-01
Features
- Built-in diagnostic function based on ISO 10816-1 (JIS B 0906).
- It is easy to diagnose bearings by the judgment criteria of the body.
- The sensor ***s a piezoelectric vibration pickup with a magnet that emphasizes measurement accuracy.
- It is convenient for equipment abnormality detection and ca*** analysis in the field.
Spec
- Model number: MK-21
- Size (mm): 69 x 30 x 154
- Measurement mode: Acceleration (ACC), Acceleration peak (ACC PEAK), Velocity (VEL), Displacement (DISP)
- Measurement range:
- L range/(ACC, ACC PEAK) 0.0 - 20.0m/s^2, (VEL) 0.0 - 20.0mm/s, (DISP) 0 - 200μm
- H range/(ACC, ACC PEAK) 0 - 200m/s^2, (VEL) 0 - 200mm/s, (DISP) 0 - 1990μm
- Measurement frequency range: (ACC, ACC PEAK) 1 - 20kHz, (VEL, DISP) 10Hz - 1kHz
- Arithmetic processing: (ACC) RMS value , (ACC PEAK) PEAK value , (VEL) RMS value , (DISP) P-P value
- Weight: Approx 140g (including cell)
- Display: LCD 4 1/2 digits, with backlight
- Power supply: AA battery x 1 (included for test)
- Set content: Body x 1 unit, Piezoelectric vibration pickup (PU-626D) x 1 piece, Magnet (MK-9002) x 1 piece, Curl cord (CD-C1-3N) x 1 piece, Carrying case x 1
