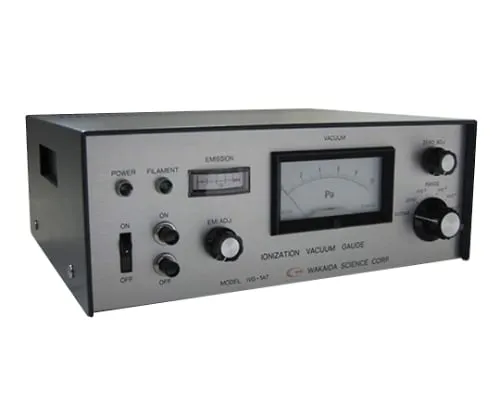

61-6074-62 Ionization Gauge IVG-1AT
Product Description
Product Model: 61-6074-62Product Brand: WAKAIDA SCIENCE […]
Contact Us
Product Details
Product Model: 61-6074-62
Product Brand: WAKAIDA SCIENCE CORP.
Features
- Since the electronic current control circuit is highly sensitive and ***s a special stable circuit, reliable measurement values are always indicated with stable operation.
- The VG-51 sphere, a unique measuring instrument with high accuracy, is calibrated precisely on the main body, so it is much more accurate than conventional vacuum gauges.
- Built-in filament protection circuit.
Spec
- Measurement range: 1 x 10^-1 - 1 x 10^-5Pa
- Measurement range: 4 stages
- Measurement sphere: VG-51 glass 15φ
- Measurement code: Standard 2m
- Recorder output: Each range full scale 10mV
- Shape: Table top type
- Dimensions (W x H x D): 302 x 111 x 253
- Weight: 4.7kg
- Power supply: 100VAC 50/60Hz
- Power consumption: 45W
