toner

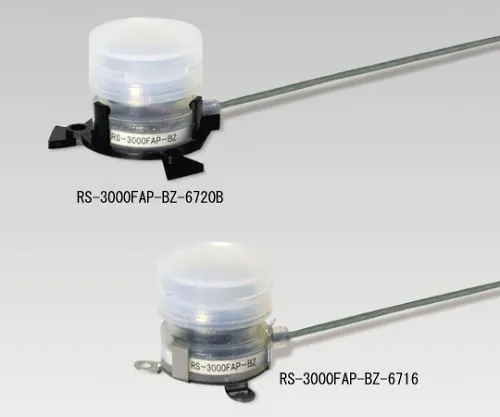

1-4241-01 Leak Sensor RS-3000FAP-BZ-6716
model:
1-4241-01
category:
toner
Product Description
Product Model: 1-4241-01 Features Realize reliable dete […]
Contact Us
Product Details
Product Model: 1-4241-01
Features
- Realize reliable detection and rapid response to leakage points that sound signals.
- The optical system can reliably detect most liquids, and can be ***d with either the built-in amplifier sensor alone or connected to the control unit.
Spec
- Model number: RS-3000FAP-BZ-6716
- Detection unit
- Mounting tool material: Stainless steel (SUS301)
- Supply voltage: DC24V +/- 10%
- Output: NPN transistor open collector (max 50mA), 1 line
- Function: Buzzer (when leaking)
- Material: Box/PFA (fluororesin), Cable coating/FEP (fluororesin)
- Size: Body/φ33.0 x 33.4mm, Cable length/2m
- Weight: Approx 55g
- Dustproof, waterproof: IP67
