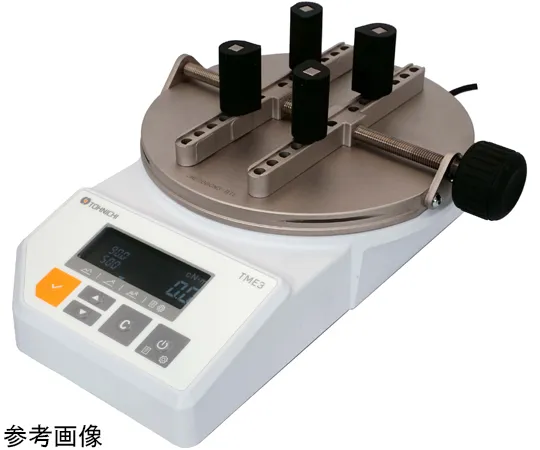

68-5725-56 Torque Meter TME20CN3
Product Description
Product Model: 68-5725-56Product Brand: TOHNICHI Mfg. C […]
Contact Us
Product Details
Product Model: 68-5725-56
Product Brand: TOHNICHI Mfg. Co., Ltd.
Features
- Detection of primary peak and secondary peak of opening torque
- It is possible to chuck from minimum φ7mm by improving the pole shape.
- Iconized display section enables intuitive operation
- Images are representative images.
Spec
- Accuracy: ±0.3F.S. +1 digit
- Torque measurement range (cN.m): 2 to 20
- 1 Memory: 0.02
- Total length (mm): 273.5
- Overall width (mm): 217
- Total height (mm): 116.5
- Chuckable Diameter (mm): φ7∼190
- Mass (Kg): 3.5
