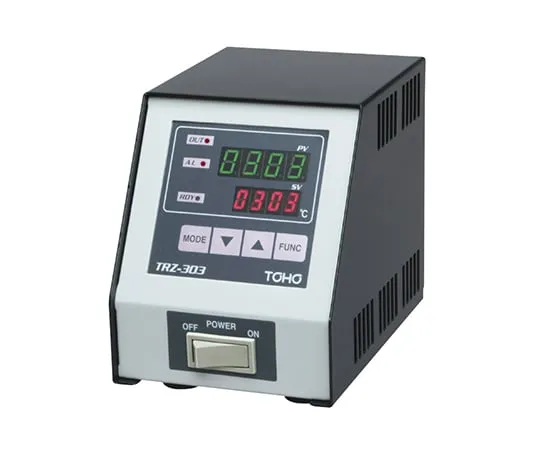

61-9638-24 Desktop Temperature Controller TRZ-303
Product Description
Product Model: 61-9638-24Product Brand: TOHO ELECTRONIC […]
Contact Us
Product Details
Product Model: 61-9638-24
Product Brand: TOHO ELECTRONICS INC.
Features
- Tabletop type temperature regulator capable of connecting heater or the like directly to main body
Spec
- Sensor input: K class thermocouple (C.A) or resistance thermometer (JPt100, Pt100)
- Control operating: PID control with auto-tuning (switching to ON/OFF control is also available)
- Temperature range: Thermocouple/0 - 1300℃ (changable *1200℃ at factory shipment. ), Resistance thermometer/0 - 500.0℃ (changable)
- Output system: Voltage output by SSR
- Output capacity: 12A, MAX (up to 1.2kw) resistance load
- Power consumption (at input voltage AC100V): Approximately 3W, or approximately 5VA (no load state)
- Weight: 900g
- Setting and indication accuracy: Thermocouple/instruction value +/- (0.3% + 1 digit) or +/- 2℃, whichever is larger (ambient temperature 23 +/- 10℃), Resistance thermometer/instruction value +/- (0.3% + 1 digit) or +/- 0.9℃, whichever is larger (ambient temperature 23 +/- 10℃)
- Power voltage: AC100V - 200V +/- 10%
- Ambient temperature and humidity range: Temperature/0 - 40℃, Humidity/RH35 - 85% (however no condensation)
- Storage ambient temperature and humidity: Temperature/-20 - 55℃, Humidity/RH35 - 85% (however no condensation)
- Use protection f*** 15A
- Outer dimensions (Width x Depth x Height mm): 98 x 162 x 124
