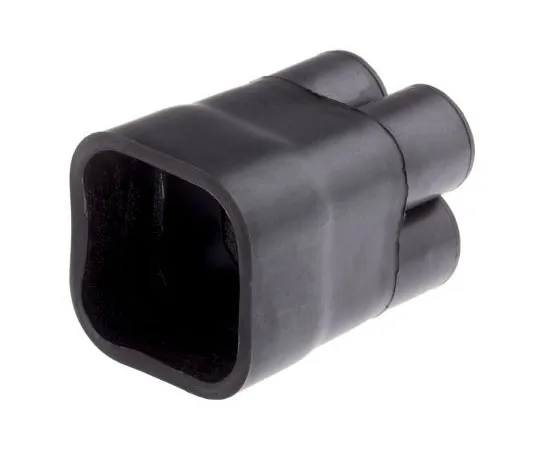

63-4733-32 TE Connectivity Multi-Legged Boot Black, Modified Polyolefin Adhesive Lined, 44.45mm F42-60FR
model:
63-4733-32
brand:
TE Connectivity
Product Description
Product Model: 63-4733-32Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4733-32
Product Brand: TE Connectivity
Features
- Thermoform® Multi-Legged Boots. Heat shrinkable boots providing a watertight seal and protecting cables and equipment from corrosion and mechanical ab***, for most mass transit, military and commercial marine applications. Flame retardant Adhesive sealant replaces tapes, epoxies and grease Reliable sealing on cable jackets and on lead, steel, copper, aluminium and most elastomeric insulation materials. Water tight. Range; -55° to +90°C, min recovery +120°C
Spec
- Quantity：1piece
- Type : Multi-Legged Boot
- Inside Diameter Primary : 44.45mm
- Inside Diameter Secondary : 20.32mm
- Adhesive Lined : Yes
- Material : Modified Polyolefin
- Number of Breakouts : 4
- Shrink Temperature : +121°C
- Colour : Black
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +90°C
- Shrunk Diameter Primary : 25.4mm
- Shrunk Diameter Secondary : 8.13mm
- CODE No.:219-6614
