63-6854-59 Insulation DC-DC Converter Vout: 12 V dc 9 to 18 V dc 20 W 12 V dc JCK2012S12
Product Description
Product Model: 63-6854-59Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-59
Product Brand: XP Power
Features

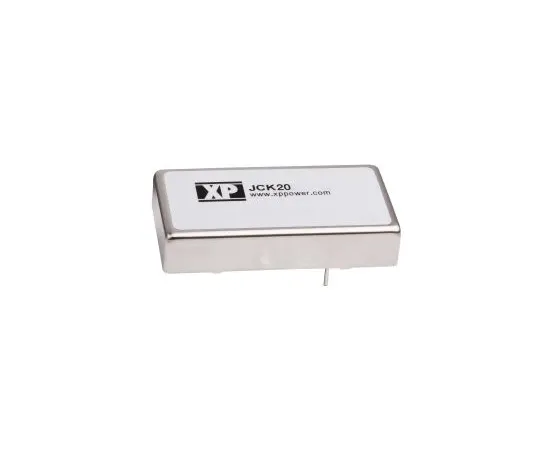

- XP Power-JCK20 Series Insulated DC-DC Converter
- XP Power's JCK20 series is a reliable 20 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 93%. Compact, 2:1 input voltage range, remote on/off setting.
- 20 W Insulated DC-DC Converter 1600 V dc Insulation 2:1 Input Range Single and Dual Output Remote On/Off Operating Temperature Range: -40 → +100 °C Up to 93% Efficient Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 20 W
- Output Current: 1.67 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 90%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: JCK
- RoHS compliance status: Compliance
- Securities Code: 122 -7424
