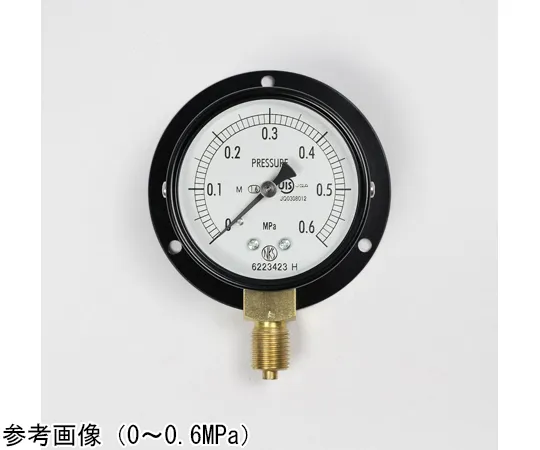

65-4270-40-20 Normal Pressure Gauge (Φ60) Vertical B Frame for Steam with 0.6 MPa with Inspection Certificate AA10-221
Product Description
Product Model: 65-4270-40-20Product Brand: NAGANO KEIKI […]
Contact Us
Product Details
Product Model: 65-4270-40-20
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is ***d in a wide range of fields.
Spec
- Size (mm): Φ60
- Shape (Mounting): Vertical B Frame
- Connections: G1/4B
- Material: Brass
- Performance: For steam
- Pressure Range: MPa_0~0.6
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
