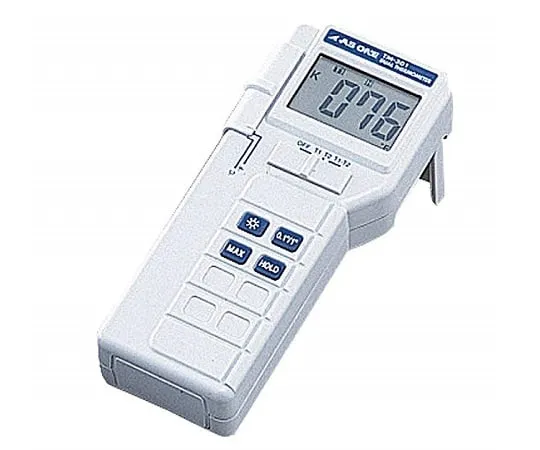

1-5812-02-20 Digital Thermometer 2ch Switching Type With Calibration Certificate TM-301
Product Description
Product Model: 1-5812-02-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5812-02-20
Product Brand: AS ONE Corporation
Features
- It has a data hold function for fixing measurement data.
- It has a maximum value memory display function that automatically memorizes the maximum temperature at the time of measurement and can be called up after measurement.
- The display has a backlight function for easy measurement in low light.
- It can measure temperature at two points (T1-T2) and display the difference between measured values.
Spec
- Number of inputs: 2
- Measurement range: 50 to 1300 ℃
- Resolution: 0 . 1/1 ℃ (switchable)
- Sensor Type: K thermocouple
- Measurement range: 50 to 1300 ℃
- Operation function: 2-point switch display/2-point temperature difference display
- Accuracy: 50 to 1000 ℃/±(0.3% rdg + 1 ℃), others/±(0.5% rdg + 1 ℃)
- Sampling rate: 2.5 times/sec
- Display: 3.5 digit LCD display
- Temperature and humidity ***d: 0 to 50 ℃, 0 to 80 %RH (0 to 35 ℃)
- Storage temperature: 20 to + 60 ℃
- Power supply : 006P (9V) battery x 1 piece (test attachment)
- Size: 156 x 65.5 x 35mm
- Weight: about 177g
- *The sensor probe is sold separately. Choose from IK series (1 -5522 - 01 to 17) or DS series (3 -1564 - 01 to 06).
- Type: toggle
- Accessories: Calibration certificates
- *At the time of shipment, we have attached 3 items of "temp", calibration certificate test results report and Traceability System Chart.
- *This is ASONE's original certificate attachment service.
- *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
