65-3530-86 Tape Type Multi-Purpose Temperature Sensor ST Series -50~210°C 8 sec, 100 mm K Type ST-12K-010-TS1-ANP
toner

65-3530-86 Tape Type Multi-Purpose Temperature Sensor ST Series -50~210°C 8 sec, 100 mm K Type ST-12K-010-TS1-ANP

model: 65-3530-86
brand: ANRITSU METER CO., LTD.
category: toner

Product Description

Product Model: 65-3530-86Product Brand: ANRITSU METER C […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 65-3530-86
Product Brand: ANRITSU METER CO., LTD.

Features

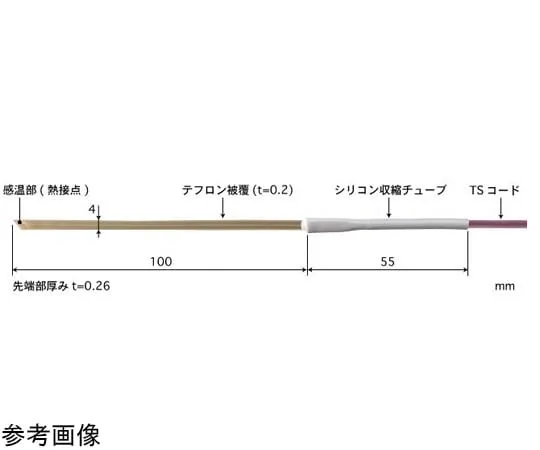

  • The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
  • [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
  • Temperature control and temperature measurement of the substrate during reflow
  • Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
  • Temperature measurement in the activation process of cells such as lithium-ion batteries
  • Temperature measurement during nailing test of lithium-ion battery
  • Temperature measurement of professional irons, etc.

Spec

  • Operating temperature range (°C): -50~210
  • Tolerance at 100 deg. C (deg. C): ±2.5
  • Response Time (sec): 8
  • tape width: standard type
  • Tip Shape: Spur
  • Coating Shape: Teflon Coating/All Coating
  • Thermocouple Type: K Type
  • Tape length (mm): 100
  • Cord length (m): 1
  • Cord Outer Diameter (φmm): 2.3
  • Coating Material: Silicon
  • Heat-resistant Temperature (°C): 240
  • Plug Shape: Mini Plug
