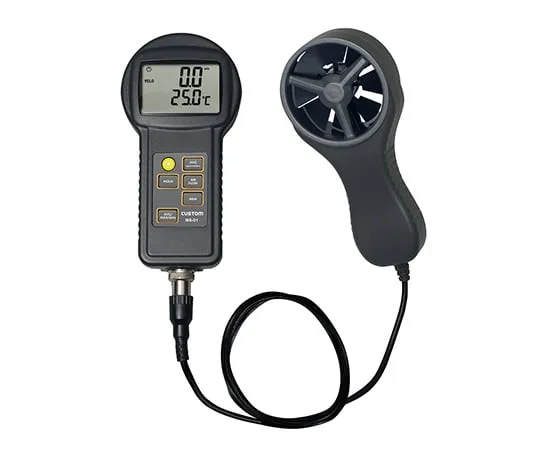

2-7658-01 Digital Wind Speed, Air Flow Meter WS-01
Product Description
Product Model: 2-7658-01Product Brand: CUSTOM corporati […]
Contact Us
Product Details
Product Model: 2-7658-01
Product Brand: CUSTOM corporation
Features
- Air volume and temperature can be measured.
- Up to 10 data items can be stored in memory.
- Air flow displays an automatic calculation value by entering the duct area in advance.
Spec
- Model number: WS-01
- Size: 85 x 38 x 168mm
- Weight: Approx 323g
- Measurement range: Wind speed; 0.5 - 25.0m/s, Wind volume; 0.0 - 27.000m 3/min, Temperature; 0 to +50℃
- Resolution: Wind speed; 0.1m/s, Air volume; 0.1m 3/min (0 - 999.9m 3/min), 1m 3/min (1000 - 9999m 3/min), 10m 3/min (10000 - 27000m 3/min), Temperature; 0.1℃
- Measurement accuracy: Wind speed; +/- 3% FS, Temperature (0 - 50℃); +/- 0.5℃
- Sampling: 1 time/second
- Function: Average value/highest value/lowest value memory, data hold, auto power off
- Display: LCD display
- Power supply: AAA dry battery 1.5V x 3 (optional)
- Sensor size: 77 x 33 x 168mm
