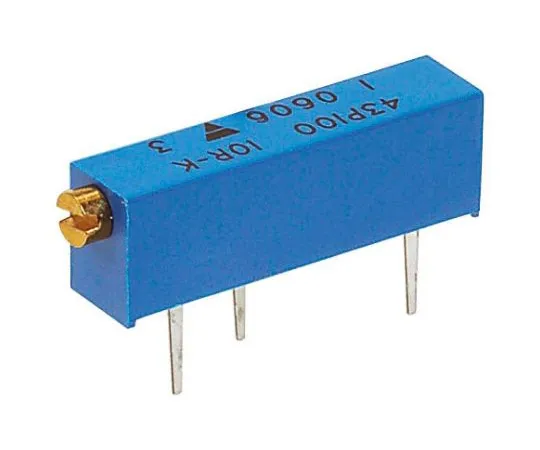

63-4697-53 Vishay 43P Series 20-Turn Through Hole Trimmer Resistor with Pin Terminations, 2MΩ ±10% 1/2W ±100ppm/°C Side Adjust M43P205KB40
Product Description
Product Model: 63-4697-53Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4697-53
Product Brand: Vishay
Features
- 19mm (3/4in.) 500mW Rectangular End Adjust 43P Series Standard. Unique slider block for excellent setability Multi-finger wiper to minimise CRV Sealed to withstand immersion board washing Moulded body with built-in standoffs Wiper idles at *** of travel Panel mounting adaptor available, stock no. < 855-305') 855-305/
Spec
- Quantity：1piece
- Maximum Resistance : 2MΩ
- Number of Turns : 20
- Mounting Type : Through Hole
- Power Rating : 1/2W
- Series : 43P
- Orientation : Side Adjust
- Termination Style : Pin
- Length : 20.57mm
- Depth : 4.83mm
- Height : 6.35mm
- Dimensions : 20.57 x 4.83 x 6.35mm
- Shaft Diameter : 2.54 mm
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- CODE No.:154-2757
