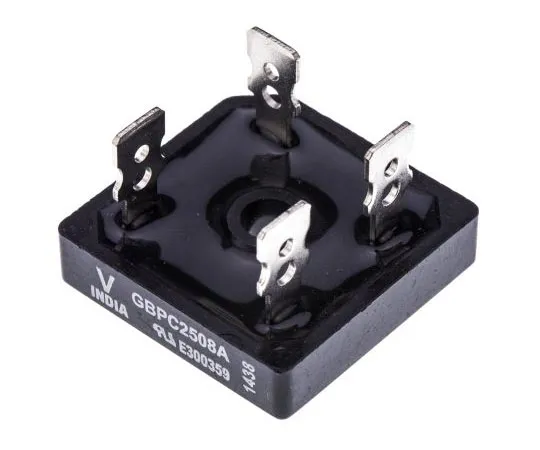

63-7523-39 Vishay VS-GBPC2508A, Bridge Rectifier, 25A 800V, 4-Pin GBPC-A VS-GBPC2508A
Product Description
Product Model: 63-7523-39Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7523-39
Product Brand: Vishay
Features
- UL E54214. Bridge Rectifiers with Push-on Terminals, VS-GBPC25 Series, Vishay Semiconductor. Universal, 3-way terminals: Push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio
Spec
- Quantity:1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Screw Mount
- Package Type : GBPC-A
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 420A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 28.6mm
- Width : 28.6mm
- CODE No.:395-4275
