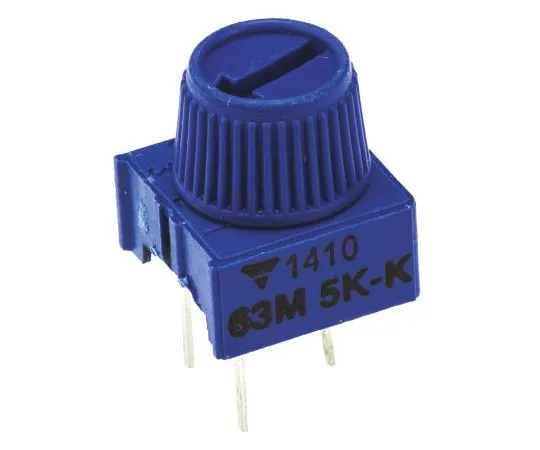

63-4697-50 Vishay 63M-T607 Series Through Hole Trimmer Resistor with Pin Terminations, 5kΩ ±10% 1/2W ±100ppm/°C Finger Adjust M63M502KB30T607
Product Description
Product Model: 63-4697-50Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4697-50
Product Brand: Vishay
Features
- 63M-T607 Finger Adjust. Height 10.41mm
Spec
- Quantity：1piece
- Maximum Resistance : 5kΩ
- Number of Turns : 1
- Mounting Type : Through Hole
- Power Rating : 1/2W
- Series : 63M-T607
- Orientation : Finger Adjust
- Termination Style : Pin
- Length : 9.52mm
- Depth : 9.52mm
- Height : 10.41mm
- Dimensions : 9.52 x 9.52 x 10.41mm
- Shaft Diameter : 8.38 mm
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- CODE No.:154-2533
