Features

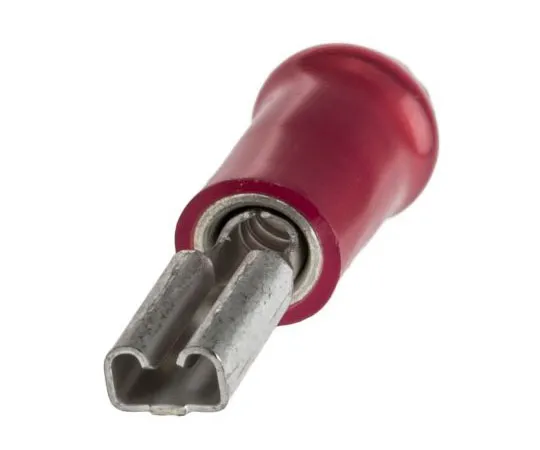

• TE Connectivity PIDG Faston 110 Receptacle Wire Crimp Terminals. PIDG insulated Faston 110 quick disconnect receptacle wire crimp terminals with a mating area interface of 2.79 x 0.79mm (stock numbers ; 719-6105 719-6105 , ; 457-5283 457-5283 and ; 680-5757 680-5757 2.79 x 0.51mm, stock number ; 680-6059 680-6059 2.79 x 0.41mm and stock number ; 680-3054 680-3054 2.79 x 0.30mm). These PIDG Faston 110 quick disconnect receptacle crimp terminals consist of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG insulated Faston 110 quick disconnect receptacle wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes. Red 0.3 - 1.5 mm² Blue 1 - 2.50 mm² Yellow 0.12 - 0.40 mm² Transparent 0.30 - 0.90 mm²
