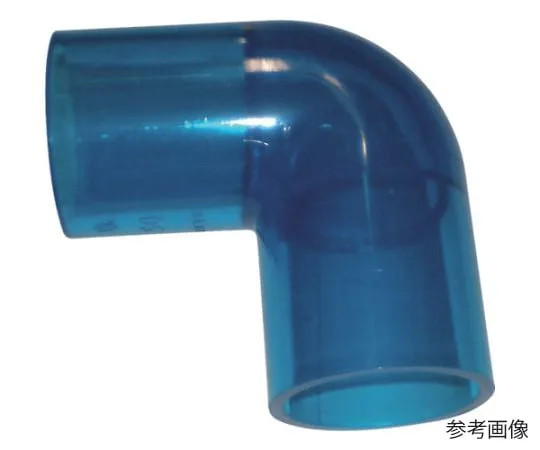

67-2353-19 HI Joint Transparent Blue Elbow 50 EHIL50
Product Description
Product Model: 67-2353-19Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 67-2353-19
Product Brand: SEKISUI
Features
- Since the joint is transparent blue, by using Eslon adhesive NO83S (white), it is possible to check the presence of coating after construction.
- Can be ***d for water supply piping
- Adhesive bonding allows speedy construction.
- Dedicated joint for HI pipe.
- By using Eslon Adhesive NO83 (white), application of the adhesive can be confirmed even after curing (drying).
- Used for water supply piping in buildings.
Spec
- PVC Pipe Nominal Diameter: 50
- Dimension (mm) D: 70
- Maximum Operating Temperature: 40°C
- Outer Diameter 70.0
- Each dimension has a tolerance
- Color: Transparent Blue
- Material: Impact Resistant Hard Polyvinyl Chloride
- Maximum operating temperature and pressure of fluid water is under 40°C (1.0 MPa or less)
- HI Pipe Dedicated Joint
- In particular, please be careful when arousing.
- Please refer to the reference materials (construction, performance and safety precautions) of the "General Catalog" of the Eslon Pipe Catalog. This can lead to serious accidents such as water leakage.
- Material/Finish: Impact Resistant Hard Polyvinyl Chloride
- Country of origin: Japan
- Securities Code: 850-6107
