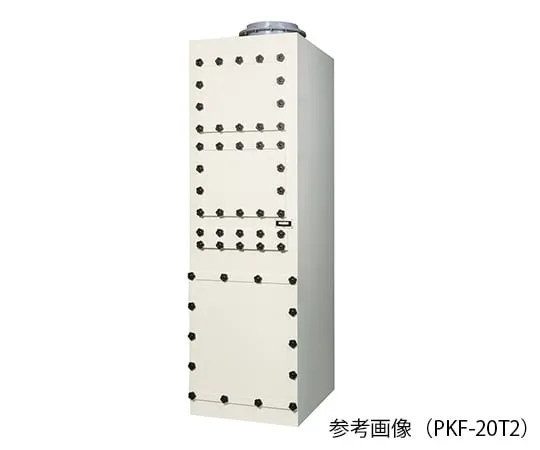

3-7888-01 Dry Scrubber (Indoor and fan built-in type) Activated carbon filter 15m3/min without control switchboard PKF-20T2Z
model:
3-7888-01
category:
gasmonitors
Product Description
Product Model: 3-7888-01 Features A dry scrubber instal […]
Contact Us
Product Details
Product Model: 3-7888-01
Features
- A dry scrubber installed next to various fume hoods.
- The scrubber can be installed alone.
- An exhaust fan made of PVC with excellent corrosion resistance is built into the lower part of the scrubber to save space for installing the exhaust fan and labor for ductwork.
- The exhaust fan motor is designed to conserve energy and reduce noise in consideration of the environment.
Spec
- Model: PKF -20 T2Z
- Organic
- Filter Specifications: Activated Carbon
- processing air volume (m3/min): 15
- Control Switchboard: None
- material : Main body/PVC (Plastic vinyl chloride )
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
- Size (mm): 600 x 750 x 2000
- Body static pressure (Pa): 450
- activated carbon filter
- Unit: 2 UC 20
- Activated charcoal Weight (kg): 32
- exhaust fan
- Type: No 200
- Motor (kW): 0.75
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
