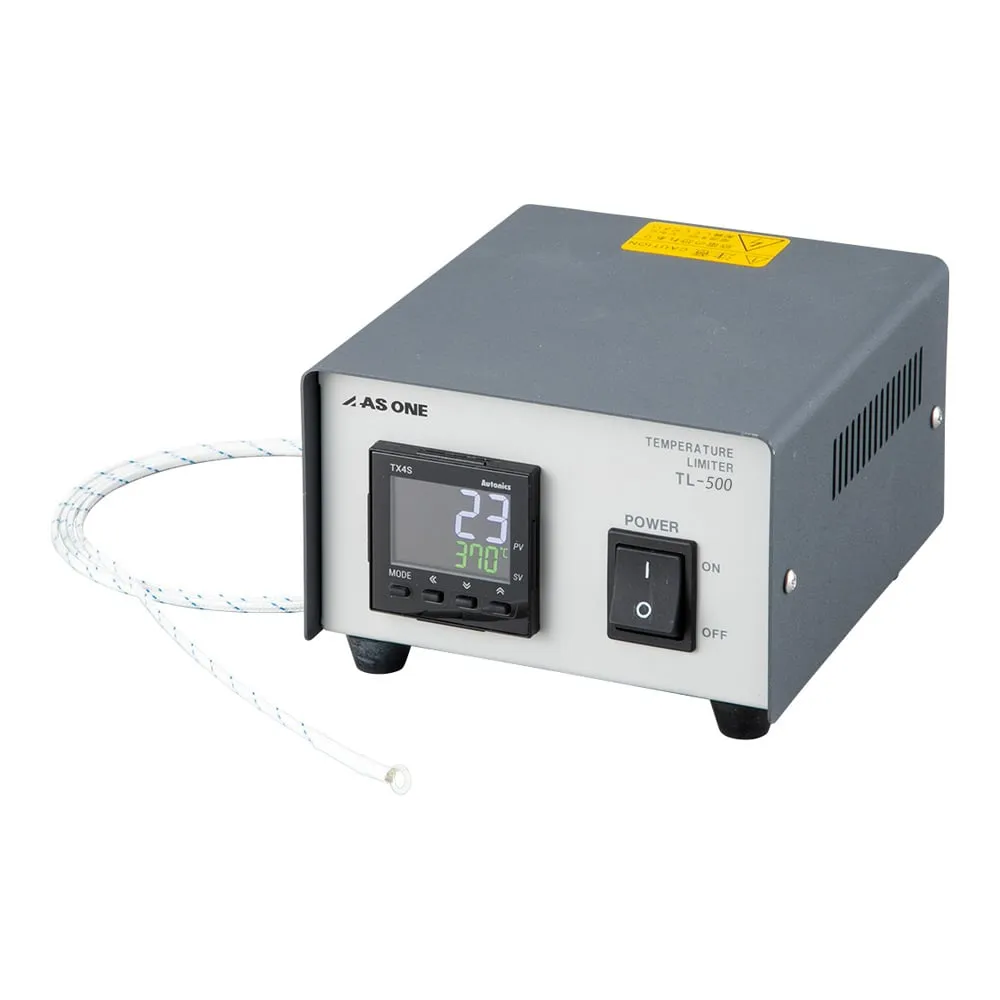

1-6125-11 Digital Tabletop Overrise Prevention System TL-500
Product Description
Product Model: 1-6125-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6125-11
Product Brand: AS ONE Corporation
Features
- The power supply is automatically cut off when the temperature rises above the set temperature, and the power supply is not restored when the temperature drops below the set value.
- It is equipped with two output terminals: a 3P outlet and a terminal stop.
- It comes with a temperature sensor with a round terminal specification (inner diameter: 4.3 mm) for convenient attachment to objects.
- The load capacity can be connected up to 1500 W (resistance load).
- Various optional K thermocouples (terminal specifications) are also available.
Spec
- Setting range (degrees): 0 ~ 500
- Minimum Display Units (deg. C): 1
- Temperature display accuracy: +/- 0.3% FS +/- 1 digit or 3 degrees C, whichever is greater
- Alarm description: When the temperature rises above the set temperature, the PV display will flash and the internal relay will be turned off (the reset will be restored by turning the main unit power switch back on).
- Output Terminal: 3P Outlet/M4 Bis Terminal
- Sensor: K thermocouple
- Connection capacity: MAX 15 A (at resistance load)
- Power supply: 100 VAC 50/60 Hz
- Body size: 135.2 x 145.5 x 81.5 mm
