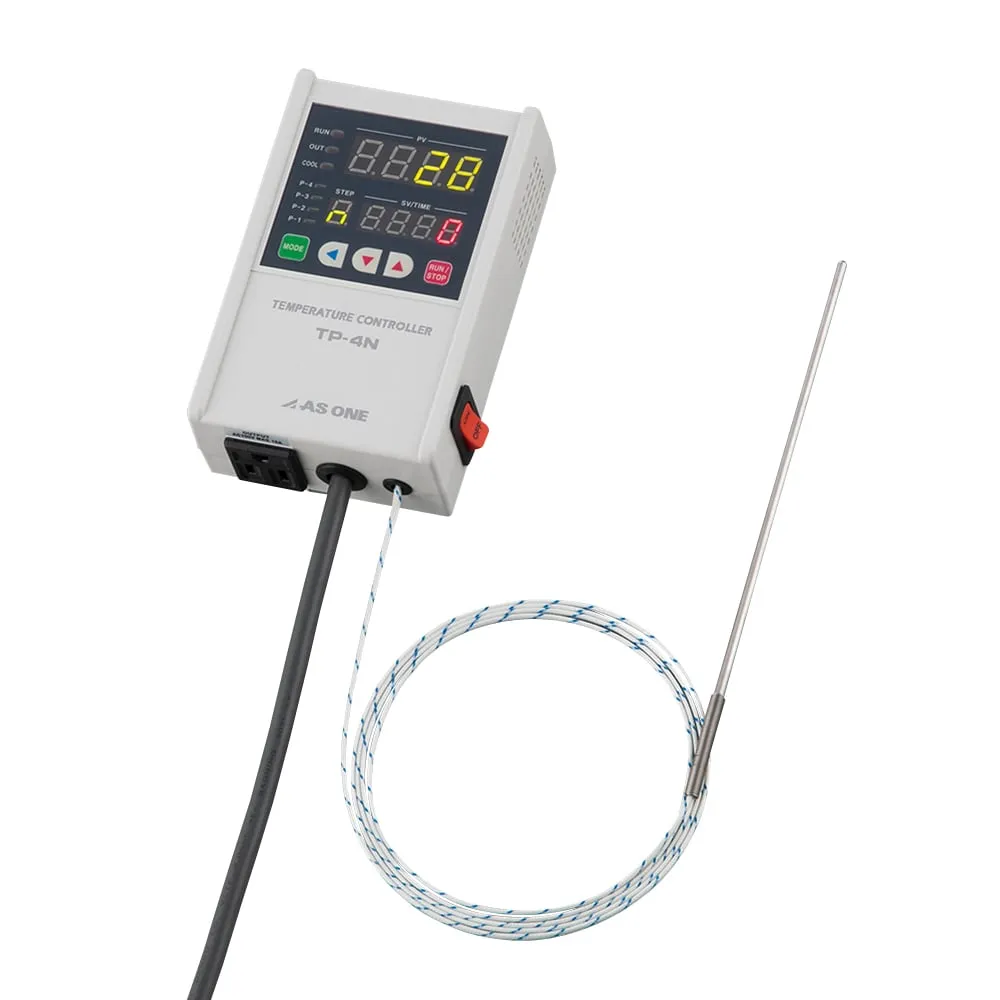

Spec

• Set Temperature (°C): -100~+600
• Minimum display unit (°C): 1
• Temperature display accuracy: ±0.5% (FS) ±1digit or 3°C, whichever is greater.
• Temperature Control System: ON/OFF Control
• Temperature Setting Display: Sheet Key Touch System/PV/SV Digital Two-Stage Display
• Sensor Type: K Thermocouple (Φ4 x 200 mm)
• Connection Capacity: 100 VAC 50/60Hz MAX12A (Resistive Load)
• Additional function: Program function/8-step 4-pattern
• Safety Functions: Circuit Protector (15 A), Alarm Output Function, Sensor Abnormality Detection
• Power: 100 VAC 50/60Hz
• Body Size: 95 x 150.6 x 48.5 mm (Excluding Protrusion)
• Difference from conventional part numbers: Main power switch (white → red) No other changes.
• Conventional Product: 1-5825-11 Digital Temperature Controller (with Programming Function) -100~600°C
