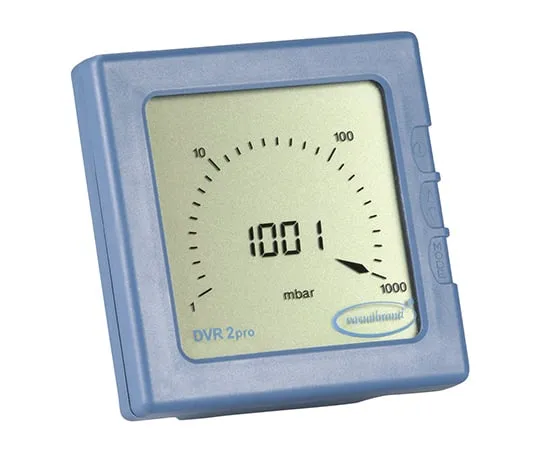

1-5118-01-56 Vacuum Gauge with English Calibration Certificate DVR2pro
Product Description
Product Model: 1-5118-01-56Product Brand: Vacuubrand Fe […]
Contact Us
Product Details
Product Model: 1-5118-01-56
Product Brand: Vacuubrand
Features
- Displays digital and analog values simultaneously on the LCD display.
- The display units can be selected as mbar, Torr, and hPa.
Spec
- Measuring range: 1 ~ 1060 hPa (mbar)
- Measurement accuracy: < 1 mbar +/- 1 digit
- Pressure transducer: capacitive/ceramic diaphragm
- Display: Analog Digital LCD Display
- Automatic power off function
- Vacuum display unit: mbar/hPa
- Measurement period time: 1 second
- Maximum allowable pressure: 0.15 MPa (1.5 bar)
- Maximum gas temperature: 80 deg. C (short time)
- Connection: Small flange NW 16, outside diameter of hose nozzle, phi 8 mm/12 mm (exchangeable standard included)
- Battery: 9V alkaline battery (included for testing)
- Size: 115 x 115 x 56 mm
- Weight: 400 g
