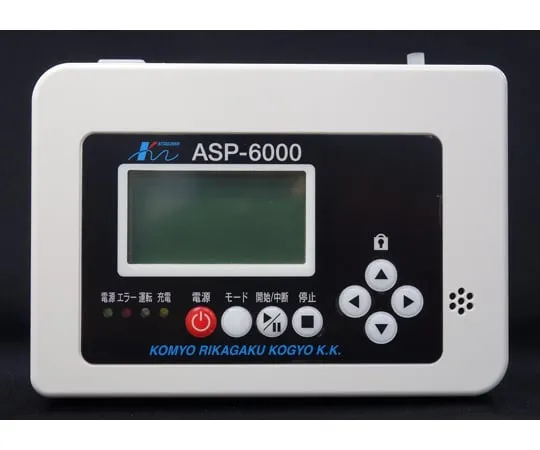

65-0320-34 High flow air sampling pump ASP-6000
Product Description
Product Model: 65-0320-34Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 65-0320-34
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- 0.10~6.00 L/min Suitable for a wide range of flow rates
- Suction pressure is strong
- Can be ***d to collect dust, metal dust, asbestos
- Settings and suction conditions can be checked in 1 screen * Mode (timer/specified volume), flow rate, suction time/accumulated flow rate, standby time
- Easy button operation * Can store 10 measurement conditions
- Clear tone: Volume for daily conversation in the office (1.5 m, no load, 5 L/min, approx. 45dB)
- Low vibration
- Power is supplied from the built-in rechargeable lithium ion battery or AC power supplied with the camera
Spec
- Flow setting range: 0.10~6.00 L/min (constant flow function)
- pressure loss tolerance
- 0.5L/min:0.0~51.0kPa
- 1.0L/min:0.0~45.0kPa
- 2.0L/min:0.0~36.0kPa
- 3.0L/min:0.0~28.0kPa
- 4.0L/min:0.0~20.0kPa
- 5.0L/min:0.0~12.0kPa
- Flow accuracy (at calibration temperature)
- 0.0~1.0L/min:±0.05L/min
- 1.0~6.0 L/min: ±5% relative to the indicated value
- For flow rate calibration: ±3%RD for 1 point of 1.00~6.00 L/min
- Accumulated flow rate indication range: 0.00~99999 L (25°C conversion)
- Accumulated time indication range: 00:00~999:59 (hours: minutes)
- Modes: Timer Mode, Constant Volume Mode, Ext***ed Menu, Calibration Mode
- Internal Flowmeter: Mass Flow Sensor
- Pump: Diaphragm type suction pump
- timer function: wait time, *** time setting
- Flow calibration mode: Flow calibration is possible in calibration mode.
- Operating temperature and humidity range: 0~40°C, 10~85%RH (non-condensing)
- Power supply: Rechargeable lithium ion battery, AC adapter included
- Internal connector: USB TYPE-C
- Operating time: Approximately 5 hours (fully charged, 5.00 L/min, unloaded, 25±5°C)
- Dimensions: W160 x H110 x D85mm (excluding protrusions)
- Mass: about 900 g
- Accessories: AC Adapter, 3 Replacement Filters, 1 Connection Tube
- Optional Products: Impinger Holder, Impinger Hook, Particulate Matter Collection Holder Hook, Replacement Filter 10 pcs
