61-0097-09 Temperature Indicator SK-M460-T
Product Description
Product Model: 61-0097-09Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-0097-09
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features

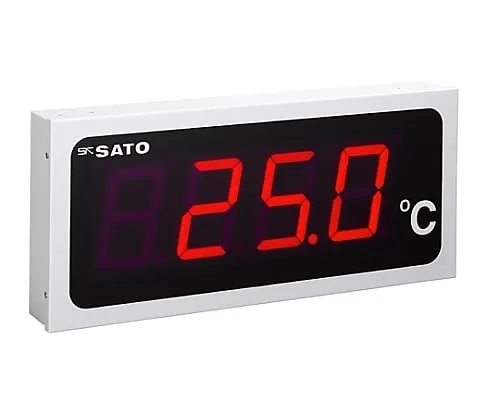

- This digital temperature indicator ***s a large LED with a text height of approximately 100 mm. Provides excellent visibility from a distance.
- Compatible with input Pt100Ω (3-wire type)
- Wall-mounted type, but can be hung as an option
- Optional with upper and lower limit warning function (specified at the time of order). *Connection of buzzer, rotating light, etc.
- Note: This instrument is an indicator only and requires a sensor. Optimally connected to the general air sensor SR-56A-015 (No. 8091-10). In addition, temperature sensors of various shapes can be manufactured according to the application.
Spec
- Display: 7-segment LED, character length approx 100mm
- Display range: -50 - 199.9℃
- Display precision: +/- (0.3 + 1 digit) ℃ (Add sensor accuracy when using)
- Usage environments: 0 - 50℃, 85%Rh or less (non condensing)
- Power supply: 12VDC approx 1.9W ( AC adapter included) Note: PSE certification is obtained in 100VAC. Use at 100VAC in the country
- Dimensions/mass: (W) 463 x (H) 213 x (D) 65mm/approx. 3.7kg
- Accessories: AC adapter, Wall mounting metal fitting (4 pieces), Instruction manual:
