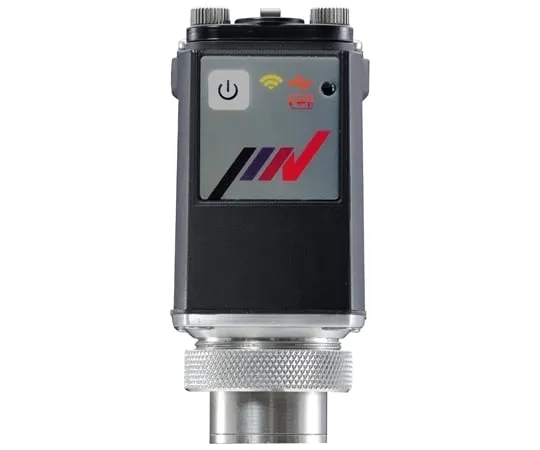

64-9641-14 Card Vibro Air2 Standard Type Set VM-2012
Product Description
Product Model: 64-9641-14Product Brand: IMV Features Hi […]
Contact Us
Product Details
Product Model: 64-9641-14
Product Brand: IMV
Features
- High-speed communication using WiFi radio and powerful data processing function make it possible to make precise measurements even in scenes where vibration measurement was difficult!
- A much-requested smartphone app (Air2Light) is now available, making it even easier to ***.
Spec
- Interface Wireless LAN: IEEE 802.11 b, WiFi compliant, 128 bit WEP compatible, WPA/WPA2 compatible
- OS: Android 4.1 or later (* It may not work dep***ing on each manufacturer's OS customization.)
- Sensors: Piezo acceleration/pickup
- Measurement mode: OA measurement, FFT measurement, waveform measurement
- Measurements: acceleration, velocity, displacement, envelope acceleration /
- Measured maximum acceleration /: 500 n/s 2
- Measuring frequency: acceleration/10 ~ 10,000 Hz, velocity/10 ~ 1,000 Hz, displacement/10 ~ 150 Hz
- Power supply: 2 AAA (AAA) rechargeable batteries
- Operating temperature range: + 5 degrees C to + 50 degrees C (guaranteed only with the included battery)
- Operating humidity range: 30 ~ 90% (noncondensing)
- Mass: About 145 g
- Dimensions: 40.5 (W) x 41.5 (D) x 88.6 (H) mm
- Product Structure: VM -2012 Card Vibro Air 2 Standard Type Set x 1
