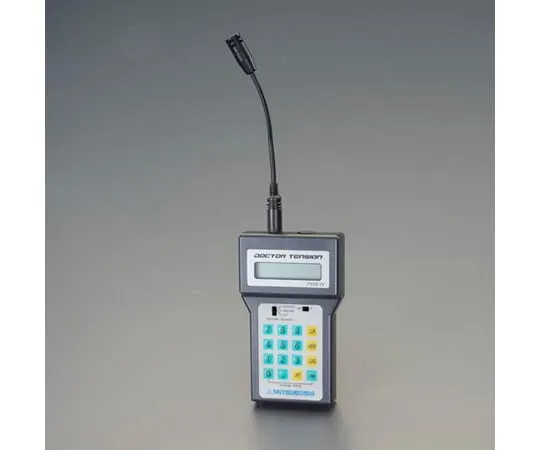

64-7909-79 V-Belt Tensiometer (Sound Type) EA716BA-20
model:
64-7909-79
category:
toner
Product Description
Product Model: 64-7909-79 Features The belt tension is […]
Contact Us
Product Details
Product Model: 64-7909-79
Features
- The belt tension is displayed instantly by reading the natural frequency of the belt with a small microphone.
Spec
- Measurable belts: timing belts, flat belts, V-belts, V-ribbed belts, etc.
- Size: 95 x 160 x 32 mm
- Weight: 200 g (excluding microphone sensor and battery)
- Measuring frequency: 10.0 to 999 Hz
- Measurement accuracy: Frequency: ± 1 [Hz] (less than 100 [Hz]) ± 1% (more than 100 [Hz])
- Configurable Range: Mass: 0.0001 to 9.9999 [kg/m] Belt Width: 1.0 to 999.9 [mm] Span Length: 1 to 9999 [mm] Ribs: 1 to 99
- power supply: AA size type battery x 2 pieces (attached)
- battery life: about 30 hours
- Accessories: Flexible Arm Type Microphone Sensor x 1 AA size Type battery x 2 pieces Instruction Manual
- Vibration frequency and tension value of belt can be displayed simultaneously.
- kgf/N 2 Unit display for Type is selectable
- wide measurement frequency range
- Adoption of high-performance one-chip microcomputer, enables tension measurement in a short time by original data processing (shortest 0.5 seconds)
- Equipped with memory function
- Equipped with auto power off function
- Japanese/English can be switched.
