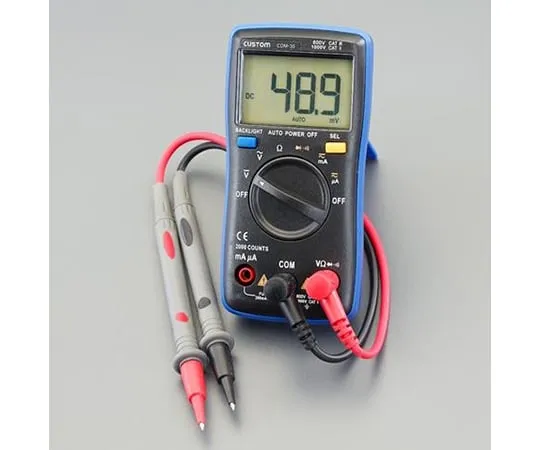

64-7909-01 Digital Multi-Tester EA707BB-4A
Product Description
Product Model: 64-7909-01Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 64-7909-01
Product Brand: CUSTOM corporation
Features
- DC Voltage: Range: 200 m/2/20/200/1000V Accuracy: ± (0.8% + 5 dgt) (Maximum accuracy) * Accuracy dep***s on the range. For details, refer to the Electrical Performance in the Owner's Manual.
- AC Voltage: Range: 2/20/200/750V Accuracy: ± (1.2% + 5 dgt) (Maximum accuracy) * Accuracy dep***s on the range. For details, refer to the Electrical Performance in the Owner's Manual.
- Resistance: Range: 200/2k/20k/200k/2M/20 MΩ Accuracy: ± (1.0%rdg + 5 dgt) (Maximum accuracy) * Accuracy dep***s on the range. For details, refer to the Electrical Performance in the Owner's Manual. Open Voltage: Approx. 3.5 V
- Handy size to fit in the pocket of work clothes. A basic model with basic functions that you can *** easily.
- Supports overvoltage category CATIII 600 V. Can measure the primary electrical path from the distribution panel to the equipment and outlet.
- Handy size that fits in one hand.
Spec
- Manufacturer: Custom (CUSTOM)
- Model number: CDM -35
- Detection Method: Average Value Method
- displaying: up to 1999 counts
- DC Current: Range: 200 μ/2000 μ/20 m/200 mA Accuracy: ± (1.2% rdg + 5 dgt)
- AC Current: Range: 200 μ/2000 μ/20 m/200 mA Accuracy: ± (1.5% + 5 dgt)
- Range: Auto
- Over-range display: "OL" mark display
- Low battery display: When battery voltage drops, battery mark is displayed.
- Polar display: Auto switch, "-" chisel display
- Sampling: about 3 times/second
- Operating Temperature and Humidity: 0 to + 40 °C, 75 %RH or Less (However, there shall be no condensation.)
- Storage Temperature and Humidity: -20 to + 60 °C, 80 %RH or Less (However, there shall be no condensation.)
- Size: 65 (W) x 32 (D) x 130 (H) mm
- Weight brand: about 130 g (including battery brand)
- power supply: AAA size battery x 2 pieces (Included)
- Test lead length: approximately 75 cm
- battery life: about 800 hours (when using alkaline battery)
- Calibration: Yes
- standards Compliant: IEC 61010 -1 CAT II 1000 V, CAT III 600 V
- Auto power off: about 15 minutes (can be released)
- Conductivity Check: Buzzer Threshold: Approx. 50 MΩ Open Voltage: Approx. 1.0 V
- Diode check: Range: 0V to 3V resolution: 1mV Open voltage: about 3.5 V
- conduction, diode check function
- Backlight and auto power off function
- Test lead, with stand
- compact digital multimeter
- Equipped with DC voltage, AC voltage, DC current, resistance, and continuity check (with buzzer) function.
