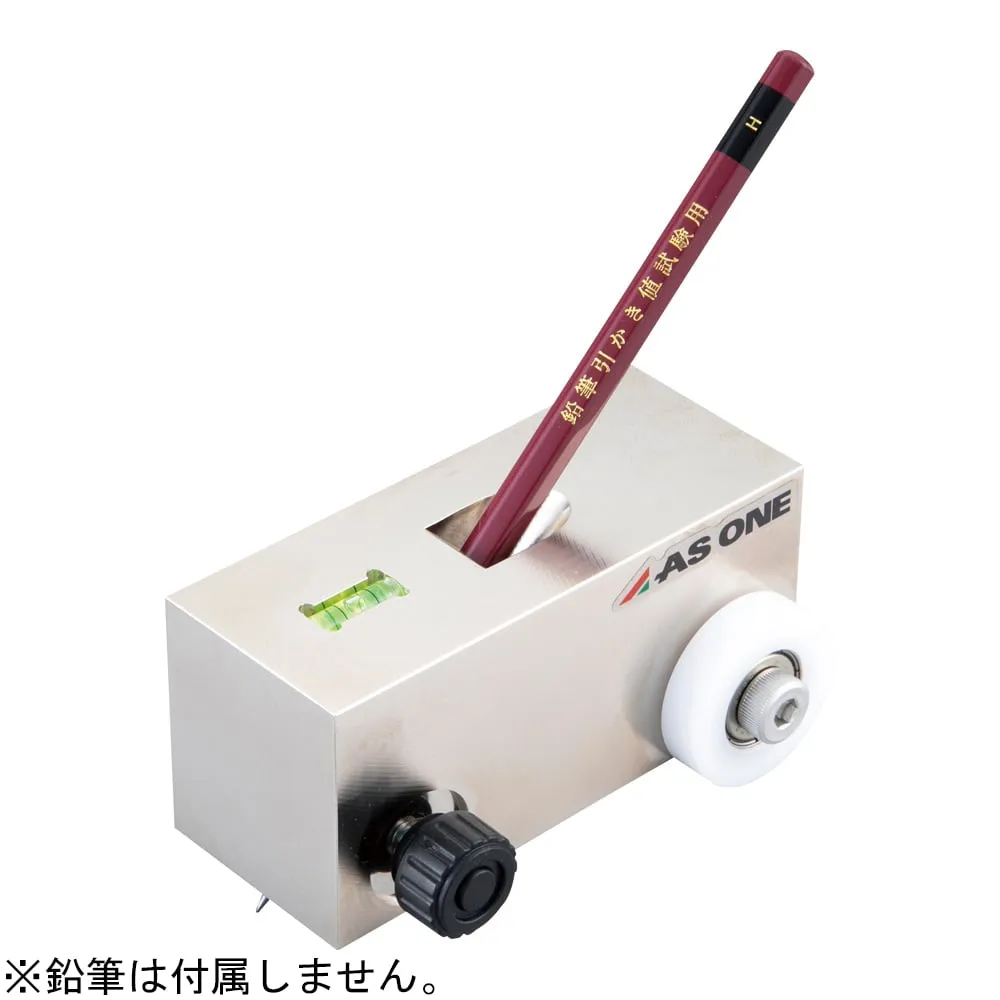

4-4562-01 pencil scratch hardness tester PHT-45
Product Description
Product Model: 4-4562-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4562-01
Product Brand: AS ONE Corporation
Features
- Conforms to JIS K 5600.
- The pencil is designed to be held at 45 degrees with a 750 g load on the tip, and the hardness and bond strength are measured with the hardness at which a scratch enters when caught.
- It is a tester to measure the hardness of paint film.
- A level is equipped on the body.
Spec
- Size (mm): 74 x 110 x 55
- Weight (kg): approximately 1.9
- Number of pieces: 1
- Material: Surface treatment S 45 C (Electroless nickel plating)
- Pencil tip load: 750 10 g
- Pencil angle: 45 +/- 1 degrees
- Level (installed in body)
- *Pencils are not included.
