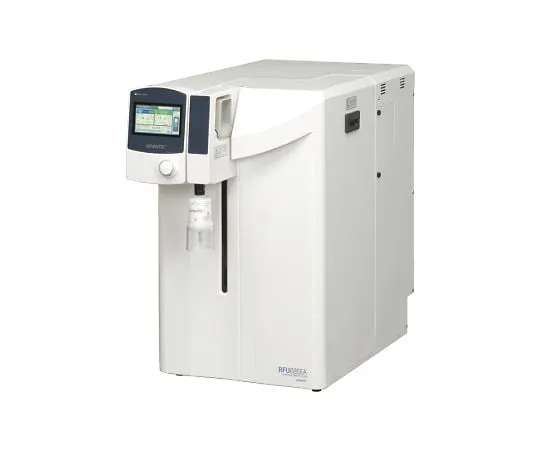

64-1028-09 Super pure water Manufacturing Equipment RO + EDI, UF3 L/h RFU672EA
Product Description
Product Model: 64-1028-09Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1028-09
Product Brand: ADVANTEC
Features
- Four types are available dep***ing on the application: standard type, UV lamp for organic decomposition, UF (ultrafiltration) membrane cartridge, UV lamp and UF membrane cartridge.
- In addition, there are two types of ion exchange water purification methods for pretreated water: the continuous electrodialysis regenerative ion exchanger (EDI) type and the ion exchange resin type. The purification rate is four types for the EDI type and two types for the ion exchange resin type.
- You can select the most suitable equipment from 24 models dep***ing on the application, amount of water ***d, and pretreatment method.
- A separate tank for storing ion-exchange water achieves high light-shielding properties and can be selected from 3 types of actual capacity, 30 L, 60 L, and 100 L, dep***ing on the amount of water ***d. It can be combined with the main body of the equipment in various ways.
- The TOC meter adopts a continuous measurement system.
- No contamination and stable accuracy.
Spec
- Purification Method: Raw Water → RO → Ion Exchange → UV Lamp → [Tank] → Composite Cartridge → UF Membrane → Filtration
- Water Supply System: Directly Connected to Water Supply
- Purified Water: Super pure water Ion-Exchange Water
- Maximum purity (specific resistance): 18.2 MΩ · cm
- T O C (ppb): < 10
- Endotoxin (EU/mL): < 0.001
- Ion exchange water purification rate (about L/h): 3
- Super pure water Water Collection Speed: Max. 2 L/min (with Variable Water Collection Speed Function)
- Super pure water Water Collection Set Range: 0.1 L to 100.0 L (0.1 L units) or 10 mL to 9,990 m (10 mL units)
- Ambient operating temperature: 5 °C, to 35 °C
- Raw Water Filter RO Pretreatment Cartridge: 1 piece
- RO Membrane Cartridge (Piece): Spiral Type (Synthetic Thin Film) 1 piece
- Ion Exchanger: Continuous Electrodialysis Regenerative Ion Exchanger (EDI Module)
- Composite Cartridge: 1 piece for Distilled Water and RO Water
- Latter-stage composite cartridge: 1 piece for removing trace impurities
- Ultra pure water Final Filter: Hollow Fiber Filter (0.04 μm) 1 piece
- Pressurized pumps (kPa): 500
- UV Lamp for Ion-exchange Water: pure water 1 piece for Sterilization
- UF membrane cartridge: Yes
- water quality meter: digital display
- Ion Exchange Water Storage Tank: Separate High Density Polyethylene (HDPE) 30 L, 60 L, 100 L (With Air Vent Filter and UV Lamp for Sterilization in Tank)
- Ion Exchange Water water storage volume Display: Numerical (in 1L increments) and bar graph display
- External input/output signal terminals: RS -232 C * 3, for non-voltage contact signal, for tank float connection, for tank sterilization UV lamp connection, for remote dispenser connection x 2 (Super pure water Water Sampling, pure water Water Sampling)
- Raw water pressure range: 49 for kPa, to, 490 for kPa
- Raw water requirement: approx. 2.6 L/min
- external dimensions ( mm ) : W 359 x D 670 x H 608
- power supply (50Hz/60Hz): AC100V approx. 2.7 A
- Mass (approx. kg): 47
- Accessories: RO Pretreatment Cartridge 1 piece, UV Lamp for pure water 1 piece, Composite Cartridge 1 piece, Post Composite Cartridge 1 piece, Hollow Fiber Filter 1 piece, Main Opening 1 piece, Water Supply Hose (With Connection Unit, inner diameter 9 mm x outer diameter 17 mm, 2 m) 1 piece, Tank Water Tube (With Connection Plug, inner diameter 4 mm x outer diameter 6 mm, 3 m) 1 piece, pure water Water Supply Tube (With Connection Plug, inner diameter 6 mm x outer diameter 8 mm, 3 m) 1 piece, Drain Tube (inner diameter 6 mm x outer diameter 8 mm, 2 m) 2 pieces, Drain Tube (inner diameter 4 mm x outer diameter 6 mm, 2 m) 1 piece, Butt 1 piece, Hollow Fiber Filter Cap 1 piece, External Signal Connector (with Leak Sensor) 1 piece, power cord 1 piece, UF Membrane Cartridge 1 piece, RO Membrane Cartridge 1 piece
