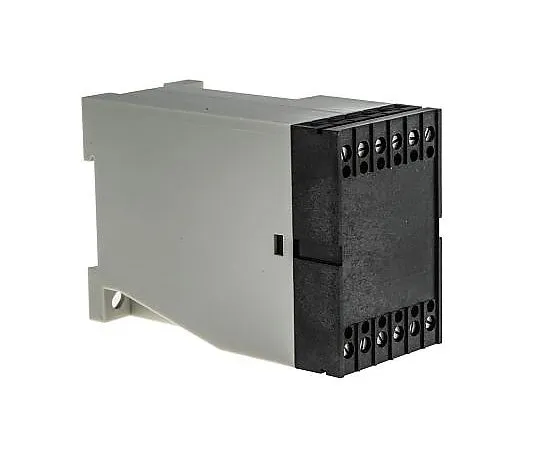

63-4637-06 RS PRO DIN Rail Enclosure Type, 110 x 75 x 50mm, Polycarbonate, Polystyrene DIN Rail Enclosure 507-680
Product Description
Product Model: 63-4637-06Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4637-06
Product Brand: RS PRO
Features
- DIN Rail/Wall/Panel Mounting
- A two-part clip box that can be attached to EN50022 specification DIN rails. Can be mounted on a wall surface using 2 screws. 12 screw terminals with a maximum rating of 10 A are installed on the top (cable maximum diameter 2.5 mm). The lower integrated support supports substrates up to 2 mm thick. Operating temperature range: -10→+80°C IP40 rating
Spec
- Enclosure Type:DIN Rail Enclosure
- Body Material:Polycarbonate, Polystyrene
- Length:110mm
- Width:75mm
- Height:50mm
- Maximum Terminals:12
- Minimum Operating Temperature:-10°C
- Maximum Operating Temperature:+80°C
- Enclosure Rating:IP40
- CODE No.:507-680
