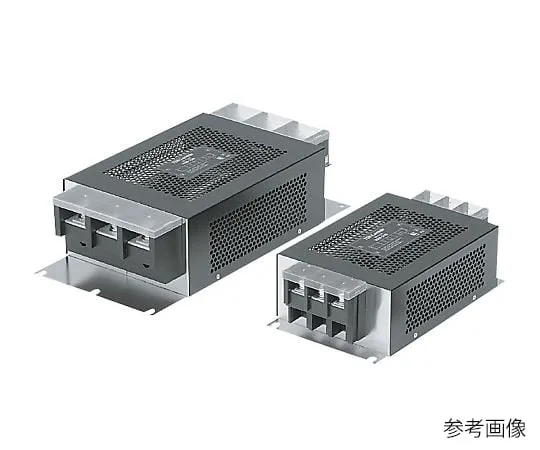

4-304-01 Noise Filter RSEN-2003
Product Description
Product Model: 4-304-01Product Brand: TDK-Lambda Corpor […]
Contact Us
Product Details
Product Model: 4-304-01
Product Brand: TDK-Lambda Corporation
Features
- Improved wiring workability thanks to self-up screws and open-and-shut covers
- Wide 3~300 A lineup
- Optional low-leakage current characteristic type, DIN rail mounting type
Spec
- Rated current AC/DC (A): 3
- DC resistance (MΩ): 250 max
- Rated voltage (AC/DC): 250V
- Size: 87 x 52 x 35mm
- Voltage: AC 2500 V 60 s (line earth)
- Insulation resistance: 100 MΩmin (DC. 500 V/1 min)
- Leakage current: 1.0 mA max (250 V/60Hz)
- Operating temperature range: 25 to + 85 ℃
- Derating start temperature: 55 ℃
