Spec

• Output Power: 504 W
• Input voltage range: DC 19 ~ 36
• Output Voltage: 12 VDC
• Output Current: 42 A
• Efficiency (typ): 0.89
• Operating temperature range:?　40 to + 100 (base plate temperature) Ambient temperature =?　40 or more
• Dimensions: 61 x 12.7 x 116.8 (mm)

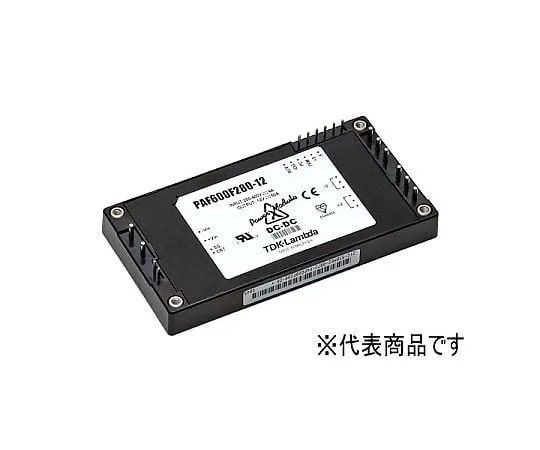

• Full-brick DC-DC power module ideal for information and communications equipment
• Consolidation of control circuits and zero-voltage switching (ZVS) technology provide 90% higher efficiency, lower noise, higher power density and cost performance.
• 3 times the maximum output power per volume of conventional our company models (5.53 W/cm 3)
• Wide input voltage range
• Wide operating temperature range
• Conductive cooling system in which the heat radiation method can be arranged according to the configuration of the device
• RoHS compliant
