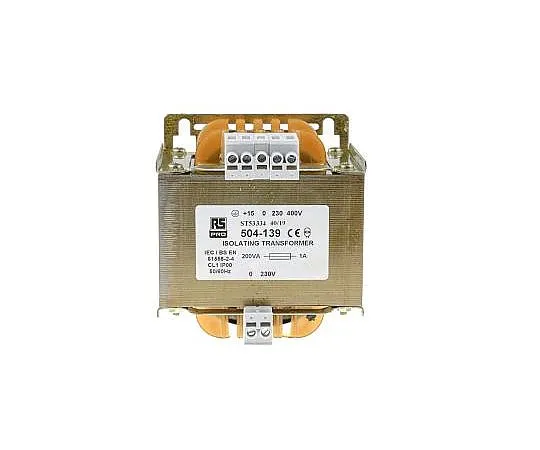

63-4636-36 RS PRO 200VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, 230V ac Secondary 504-139
Electronic/Electrical Parts and Controll Equipments

63-4636-36 RS PRO 200VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, 230V ac Secondary 504-139

model: 63-4636-36
brand: RS PRO

Product Description

Product Model: 63-4636-36Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4636-36
Product Brand: RS PRO

Features

  • Control Panel Primary 230/ 400Vac with +15Vac Tap
  • High quality safety and isolating transformers designed for *** in control circuits and general applications Low loss noise laminations Dual standard primary winding 230/400Vac with +15V tap for input flexibility Dual secondaries are centre tapped
  • Earth terminal provided Varnish impregnated for overall protection against humidity and rusting Fully shrouded cage clamp terminal with voltagemArkings Detailed product specification on permanent label High efficiency, low regulation design

Spec

  • Primary Voltage Rating:230 V ac, 245 V ac, 400 V ac, 415 V ac
  • Secondary Voltage Rating:230V ac
  • Power Rating:200VA
  • Mounting Type:DIN Rail
  • Number of Outputs:1
  • Length:108mm
  • Width:114mm
  • Depth:110mm
  • Dimensions:108 x 114 x 110mm
  • Minimum Operating Frequency:50Hz
  • Maximum Operating Frequency:60Hz
  • Maximum Temperature:+35°C
  • Weight:5kg
  • CODE No.:504-139
