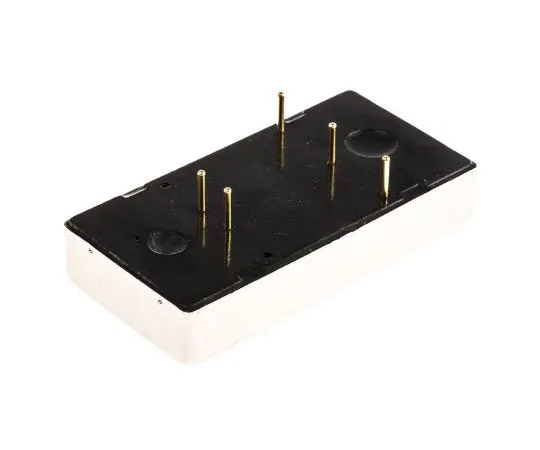

63-7600-12 TRACOPOWER TEL 15 15W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc TEL 15-2422
Product Description
Product Model: 63-7600-12Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7600-12
Product Brand: TRACOPOWER
Features
- UL/cUL 60950-1, IEC/EN 60950-1 (Compliance up to 60 VDC input voltage (SELV limit). CSA certified for Canada and US. Operating temperature is without derating. For suitable heatsink see stock number ; 745-1240 745-1240. 3. Traco 15W Output Regulated Isolated DC-DC Converter - TEL15 Series. 15W single/dual output regulated isolated DC-DC converters using highly reliable SMD technology. These isolated DC-DC converter modules have a high efficiency which enables an operating temperature range of -25°C to +71°C without derating. Wide input range 2:1 1.5KVdc input / output isolation High efficiency up to 83% Indefinite short circuit protection SMD internal construction Shielded metal case with insulated base plate Cost optimised design Industry standard pin-out
Spec
- Quantity:1piece
- Output Voltage : ±12V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1500V dc
- Power Rating : 15W
- Output Current : ±625mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : 1 x 2 in
- Load Regulation : ±1%
- Maximum Temperature : +71°C
- Depth : 10.2mm
- CODE No.:510-6131
