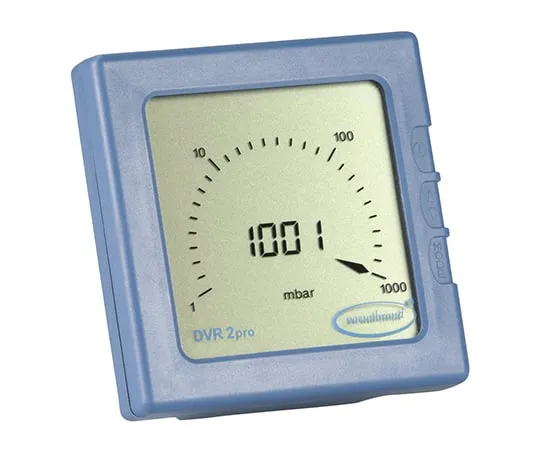

1-5118-01 Vacuum Gage DVR2
Product Description
Product Model: 1-5118-01Product Brand: Vacuubrand Featu […]
Contact Us
Product Details
Product Model: 1-5118-01
Product Brand: Vacuubrand
Features
- Displays digital and analog values simultaneously on the LCD display.
- The display units can be selected as mbar, Torr, and hPa.
Spec
- Model number: DVR2
- Measurement range: 1 - 1100hPa (mbar), 1 - 825Torr
- Measurement accuracy: <1mbar (0.75Torr) ±1 digit
- Pressure transducer: Electric capacity type/diaphragm made of ceramic
- Display: Analog, digital LCD display
- Automatic power OFF function
- Vacuum display unit: mbar, Torr, hPa
- Measurement period time: 1 second
- Maximum allowable pressure: 0.2MPa (2bar)
- Highest gas temperature: 80℃ (short time)
- Connection: Small flange NW16, Hose nozzle outer diameter φ8mm, 12mm (screwed at the flange section, standard set)
- Battery: Lithium battery (9V)
- Size: 115 x 115 x 66mm
- Weight: 400g
