1-1824-02-56 Small Digital Manometer with English Calibration Certificate HT-1500NM
model:
1-1824-02-56
category:
toner
Product Description
Product Model: 1-1824-02-56 Features It is small and li […]
Contact Us
Product Details
Product Model: 1-1824-02-56
Features

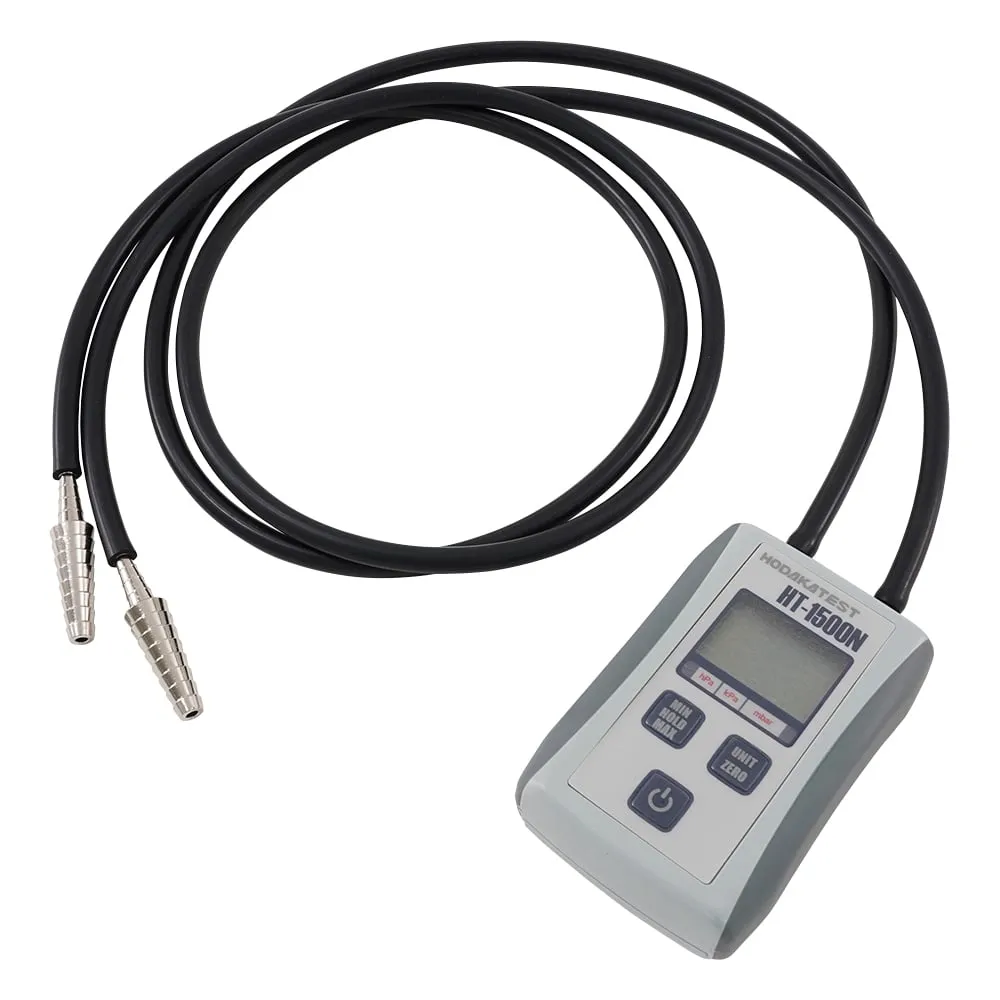

- It is small and lightweight and fits in the palm of your hand.
- Positive pressure, negative pressure and differential pressure can be measured.
- Four units can be switched.
- Can be fixed to the wall surface by the back magnet.
Spec
- Listed pressure: Gauge pressure
- Measuring range: -199.9 hPa to + 199.9 hPa
- Resolution: 0.01 hPa, -19.99 hPa to + 19.99 hPa, 0.1 hPa, -199.9 hPa to -20.0 hPa, + 20.0 hPa to + 199.9 hPa
- Accuracy: F.S. +/- 1%
- Maximum allowable pressure: 500 hPa
- Units: hPa, kPa, mbar
- Pressure connection port: Hose joint
- Sensor: Piezoresistance semiconductor sensor
- Operating temperature: 0 to 40 degrees C
- Storage temperature: -20 to 60 degrees Celsius
- Power supply: 2 AA alkaline batteries (included for testing)
- Dimensions: W 64 x H 95 x D 28 mm (excluding protrusions)
- Weight: 145 g (battery included)
- Accessories: 2 AA alkaline batteries, 2 different-diameter connectors, 2 hoses (1m)
